SPECIFICATIONS
25 Tooth
Output Spline:
48.4 mm
Length:
15 mm
Width:
30.7 mm
Height:
40 g
Weight:
12 kg-cm (166.7 oz-in)
Torque @ 7.4V:
0.055 sec/60°
Speed @ 7.4V:
FEATURES

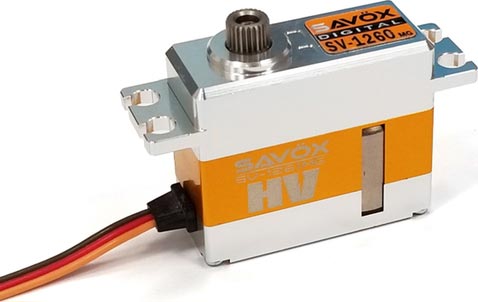

With the SV-1260MG, Savox has managed to develop one of the most powerful mini class servos. The specifications of this high-voltage performance servo are made possible by a powerful coreless motor, which is significantly larger than than found in other brand servos. An aluminum housing ensures good heat dissipation, and is also an extremely robust yet lightweight casing. The metal gear train is designed to help reduce wear and keep backlash to a minimum. These attributes make it an ideal choice when accuracy and power are required in confined spaces.
