Coreless Digital Servo High Voltage Low Profile
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

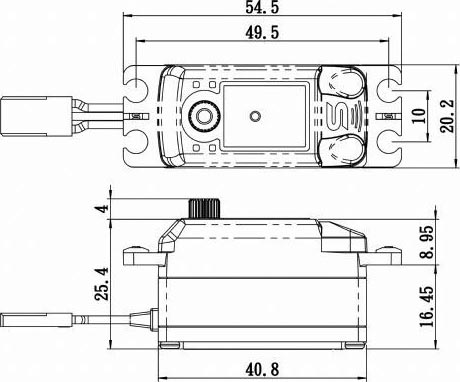

SPECIFICATIONS
Low Profile
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.8 mm
Length:
20.2 mm
Width:
25.4 mm
Height:
46 g
Weight:
Steel
Geartrain:
Coreless
Motor Type:
7.4 - 8.4 v
Voltage Range:
15 kg-cm (208.3 oz-in)
Torque @ 7.4V:
0.085 sec/60°
Speed @ 7.4V:
18 kg-cm (250 oz-in)
Torque @ 8.4V:
0.075 sec/60°
Speed @ 8.4V:
FEATURES
- Steel gear train provide durability against heavy use.
- Capable of HV operation.
- Standard size performance in a low profile package.
- Ideal for 1/10 on road and other applications where space is tight.
- Soft Start and Sanwa SSR Compatibility

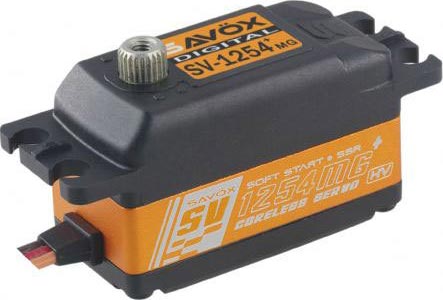

The SV-1254MG servo is a high performance coreless servo with good torque and fast transit time in a low profile package.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006994284 4710006994284
SAVSV1254MGP
