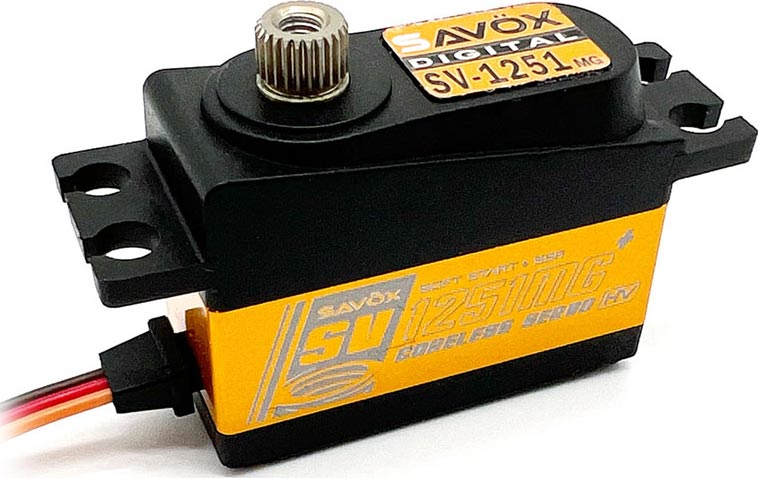

Digital Low Profile Metal Gear .085/138oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.8 mm
Length:
20.2 mm
Width:
25.4 mm
Height:
44.5 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
7.0 Kg - cm (97.21 oz-in)
Torque @ 4.8V:
0.10 sec/60°
Speed @ 4.8V:
9 kg-cm (125 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
FEATURES
- Metal gear train ensures durability under harsh situations.
- Aluminum case provides cooler operating temperatures.
The SC-1251MG Plus is a high speed, low profile servo which combines leading edge technology with metal gear train to make an ideal option when space or weight is a concern.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
