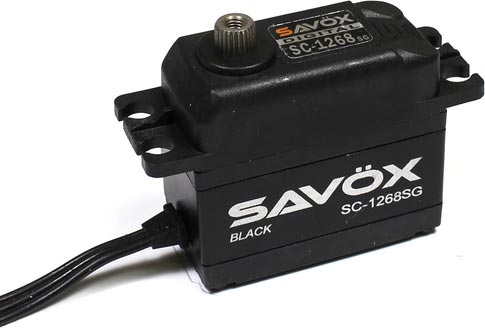

High Torque Digital Servo Black Edition Steel Gear
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

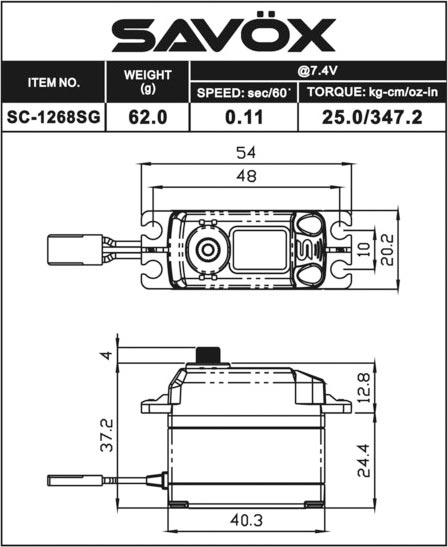

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
62 g
Weight:
11.5 kg-cm (159.71 oz-in)
Torque @ 4.8V:
0.15 sec/60°
Speed @ 4.8V:
15 kg-cm (208 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
20 kg-cm (277.75 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
FEATURES
- Sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire
- ICombines leading edge technology with super high 12 bit (4096) resolution.
- Higher performance due to increased voltage and improved technology
- Incredible torque
- Increased transit speed
- Increased efficiency
- Water resistant with 4 silicon seals implanted
- Strong and precise-made steel gears
- Suitable for 1/8th nitro racing and large scale aircraft, 600 and 700 class helicopters.
Unregulated LiPo battery for extreme torque! The SC-1268SG is the high torque servo you always dreamed of. Best used for 1/8th scale nitro racing and can push 347.2 oz. of torque.
