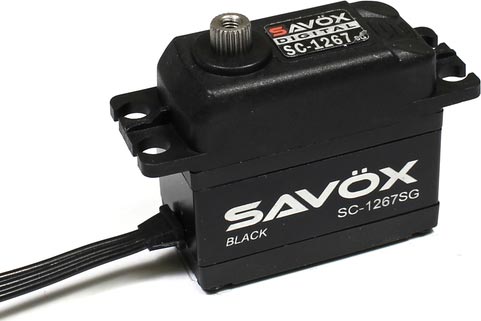

High Torque Digital Servo Black Edition Steel Gear
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

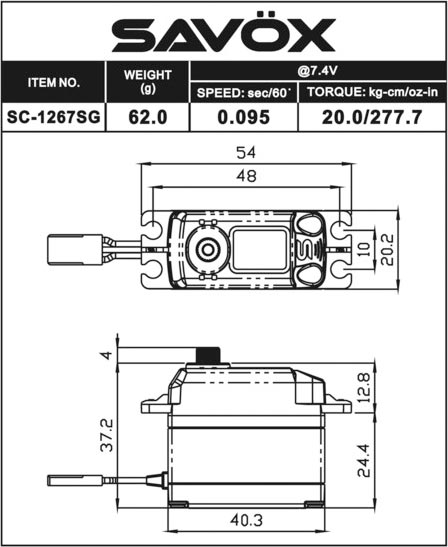

SPECIFICATIONS
40.3 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
62 g
Weight:
9.4 kg-cm (130 oz-in)
Torque @ 4.8V:
0.13 sec/60°
Speed @ 4.8V:
13 kg-cm (180.5 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
20 kg-cm (277.75 oz-in)
Torque @ 7.4V:
0.09 sec/60°
Speed @ 7.4V:
FEATURES
- Sleek new unique black design with laser etching and a shorter 200mm black shielded lead wire.
- Higher performance due to increased voltage and improved technology
- Incredible torque
- Increased transit speed
- Increased efficiency
- Water resistant with 4 silicon seals implanted
- Strong and precise-made steel gears
- Suitable for 1/8th nitro racing and large scale aircraft
- Suitable for 600 and 700 class helicopter 1/8th scale buggies, truggy, and crawlers.
This high speed high voltage servo will give you all the performance you need without breaking the bank. This steel geared servo is water resistant with 4 silicon seals implanted. So if you want to blow by the competition then this servo is for you!
click image to enlarge
ADDITIONAL PHOTOS
|
