Digital Low Profile Super Speed .07/97oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

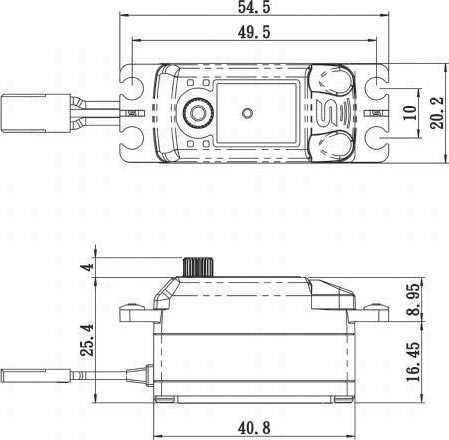

40.8 mm
Length:
20.2 mm
Width:
25.4 mm
Height:
44.5 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
4.8 - 6.0 v
Voltage Range:
4.5 kg-cm (63 oz-in)
Torque @ 4.8V:
0.08 sec/60°
Speed @ 4.8V:
7.0 kg-cm (97.21 oz-in)
Torque @ 6.0V:
0.07 sec/60°
Speed @ 6.0V:
FEATURES
- Metal gear train ensures durability under harsh situations.
- Ideal for 1/10 on road vehicles.
- Aluminum case provides cooler operating temperatures.

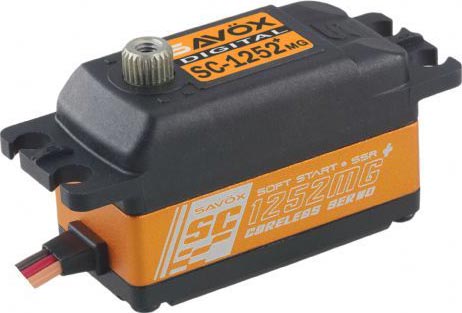

The SC-1252MG Plus is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.
