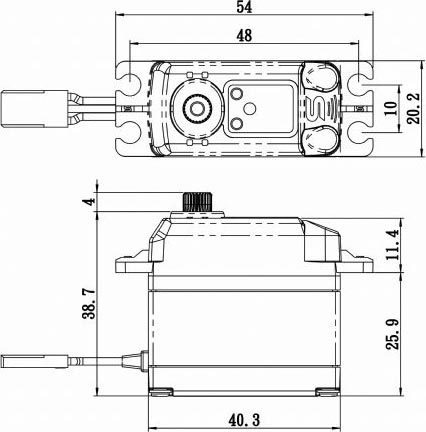

SPECIFICATIONS
Digital
Type:
40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
69 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
6.0 - 7.4 v
Voltage Range:
23 kg-cm (319 oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
28 kg-cm (389 oz-in)
Torque @ 7.4V:
0.095 sec/60°
Speed @ 7.4V:
FEATURES
Unique steel gear train.
Capable of HV operation.
Brushless motor for smooth operation and efficiency.
Ideal for 1/8 buggies and large scale aircraft.

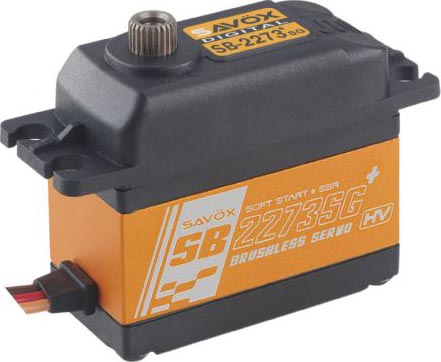

The Savox SA-2273SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
