HV Brushless Digital Heli Tail .03/97.2oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:

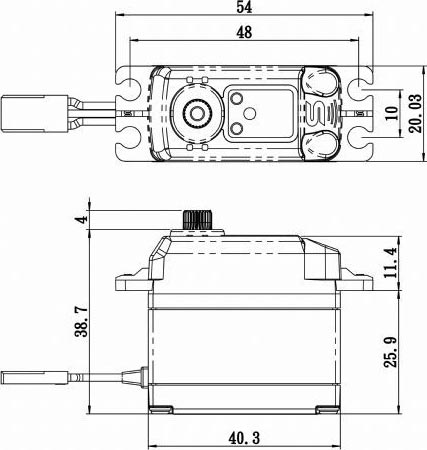

40.3 mm
Length:
20.2 mm
Width:
38.7 mm
Height:
69 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
5.0 kg-cm (70 oz-in)
Torque @ 6.0V:
0.045 sec/60°
Speed @ 6.0V:
7.0 kg-cm (97.21 oz-in)
Torque @ 7.4V:
0.032 sec/60°
Speed @ 7.4V:
10 kg-cm (138.9 oz-in)
Torque @ 8.4V:
0.028 sec/60°
Speed @ 8.4V:
FEATURES
- Metal Gear train for extended life and durability.
- Brushless motor for smooth operation and efficiency.
- Ideal for helicopter use due to its amazing speed.

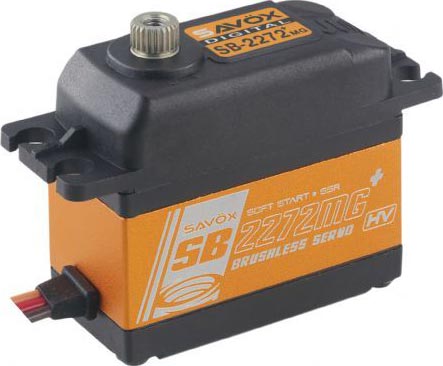

The Savox SB-2272MGP High Voltage Brushless Digital Servo combines a brushless motor and metal gears to ensure long lasting performance. The incredible speed of this servo makes it ideal for use with gyros.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006994215 4710006994215
SAVSB2272MGP
