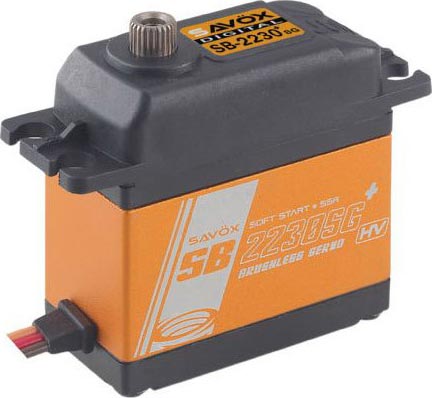

Tall HV Brushless Digital Hi-Torq .13/583oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

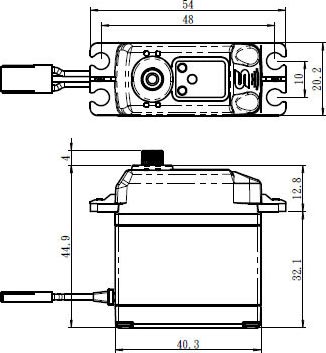

SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.3 mm
Length:
20.2 mm
Width:
44.9 mm
Height:
84 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
36 kg-cm (500 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
42 kg-cm (583.3 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
55 kg-cm (760 oz-in)
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
FEATURES
- Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
- Brushless motor provides longer life and cooler operating temps.
- Extremely strong unique steel gears ensure long-life and durability.
The Savox SB-2230SG Plus Monster Torque Brushless servo features a slightly taller case design, and contains unique steel gears to accommodate the massive output torque.
click image to enlarge
ADDITIONAL PHOTOS
|
4710006994260 4710006994260
SAVSB2230SGP
