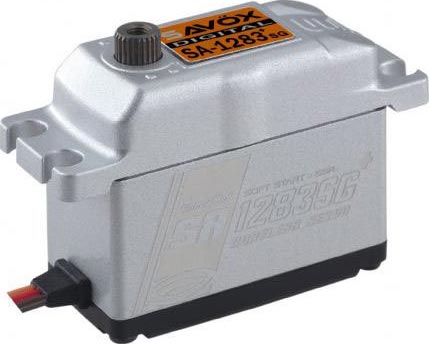

Coreless Digital Steel Gear .13/416oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.3 mm
Length:
20.2 mm
Width:
36.4 mm
Height:
Steel
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 V
Voltage Range:
25 kg-cm (347.18 oz-in)
Torque @ 4.8V:
0.16 sec/60°
Speed @ 4.8V:
30 kg-cm (417oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:
FEATURES
- Combines leading edge technology with super high 12 bit (4096) resolution.
- Extremely strong unique steel gears ensure long-life and durability.
- Full aluminum case design provides for durability.
- Ideal for steering on rock crawlers, monster trucks, and 1/8th scale vehicles.
- Soft Start and Sanwa SSR Compatibility
The SA1283SG combines leading-edge technology with high 12-bit (4096) resolution for one amazing servo! The strong unique steel gears and all aluminum case ensure long-life and durability.
click image to enlarge

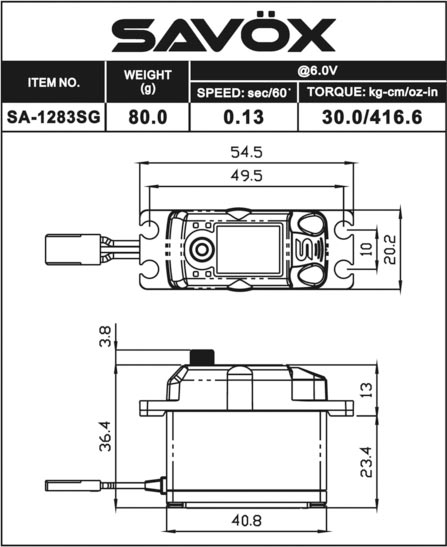

ADDITIONAL PHOTOS
|
