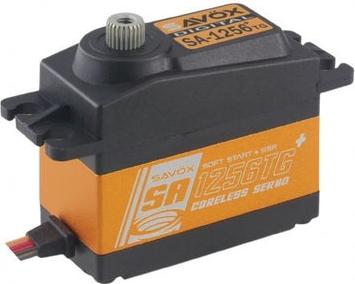

Coreless Digital Standard Hi-Torq .15/277oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
RC Planes
Application:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40.2 mm
Length:
20.2 mm
Width:
37.2 mm
Height:
64 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
4.8 - 6.0 v
Voltage Range:
16 kg-cm (222.2 oz-in)
Torque @ 4.8V:
0.18 sec/60°
Speed @ 4.8V:
20 kg-cm (277.75 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
- Titanium gears ensure long life, durability, and lighter weight.
- Minimized backlash for precision aerobatic airplane use.
- Aluminum middle case to help with cooler operating temperatures.
The SA-1256TG Plus servo is perfect for those who are looking for a big upgrade for RTR servos. SA series servos feature minimized backlash, making them ideal for use on flying surfaces of RC planes.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
