Features:

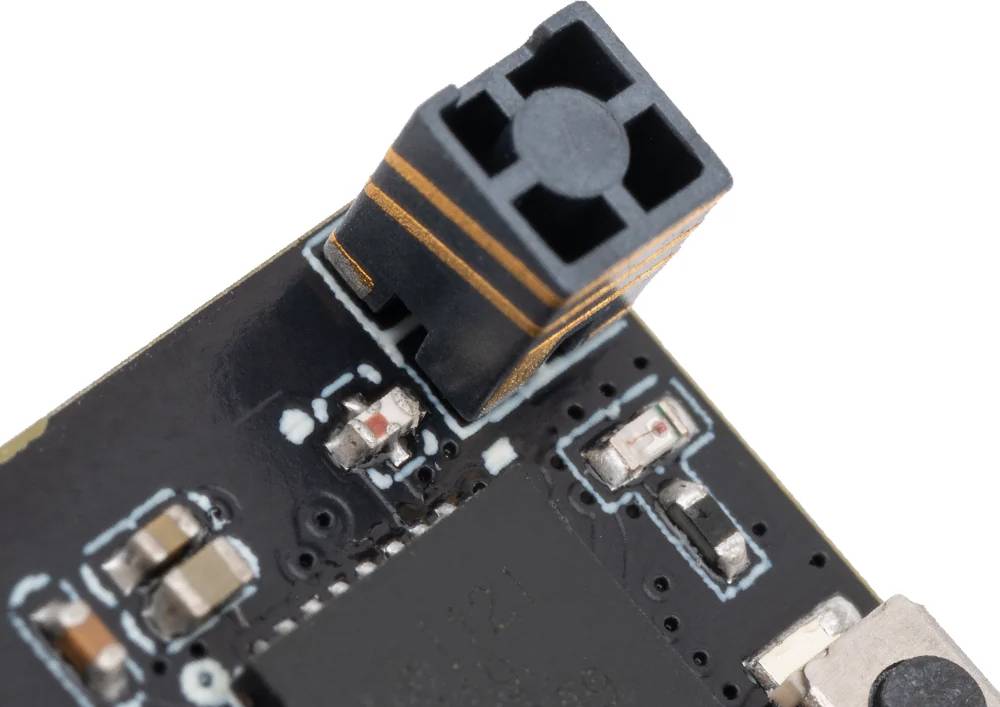

- Integrated 2.4GHz tower antenna
- ExpressLRS 2.4GHz

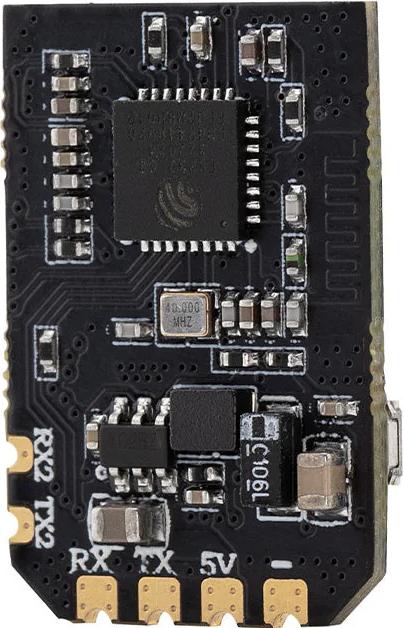

- ESP32C3 high-performance MCU

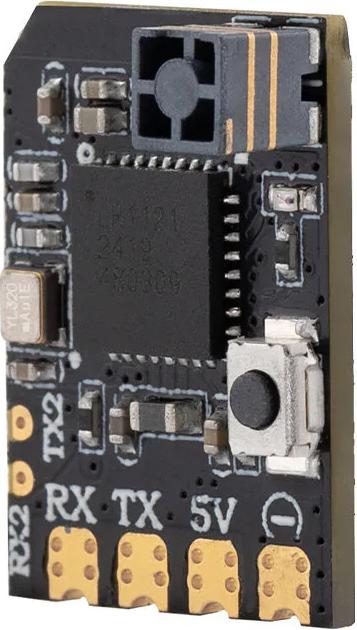

- Semtech LR1121 Transceiver
- Secondary UART port for advanced functionality

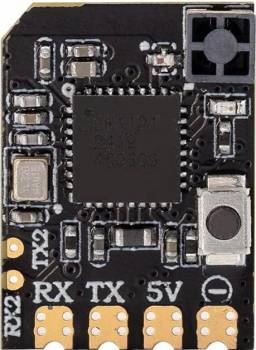

- Castled pads for easy soldering
Specifications:
- Item: XR2 Nano 2.4GHz ExpressLRS Receiver
- Type: ISM2.4
- MCU: ESP32C3
- RF Chip: Semtech LR1121
- Antenna: Integrated 2.4GHz Tower Antenna
- Frequency Range: 2.400 - 2.479GHz
- Telemetry Power: 10mW
- Maximum Packet rate: DK500Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 0.8g

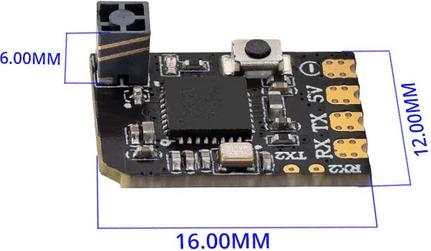

- Dimension: 16mm * 12mm * 6mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR2 2.4 RX
- Bus interface 1: CRSF
- Bus interface 2: UART
The XR2 Receiver is a nano-sized powerhouse engineered for 2.4GHz ExpressLRS, featuring an integrated tower antenna that delivers exceptional reception within its ultra-compact design. With a footprint of just 16x12mm and a lightweight of only 0.8g, it fits seamlessly into even the most space-constrained builds. Driven by the advanced Semtech LR1121 transceiver (third generation), the XR2 offers compatibility with all ELRS 2.4GHz transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unparalleled reliability and responsiveness. The built-in Wi-Fi module simplifies firmware updates and configuration via a WebUI on your PC or mobile device. With ultra-low latency and high refresh rates, the XR2 stands out in Whoops, micro drones, and fixed-wing models, where every gram and millimeter counts for peak performance.
