ERS-CV01 Cell Voltage Sensor

Specifications

• Item: ERS-CV01 Cell Voltage Sensor
• Operating voltage (serial port): 5–8.4V
• Operating current (serial): 8mA
• Balance port current (8S): 2mA
• Supported cells: 2–8S
• Battery types: LiPo, LiHV, LiFe, LiIon
• Voltage accuracy: ±0.01V
• Temperature range: –10 ? to +85 ?
• Size: 43.5 × 25 × 7mm
• Weight: 6.5g

Features

• Real-Time Per-Cell Voltage Monitoring: Instantly view individual cell voltages through your radio for improved battery safety and performance.

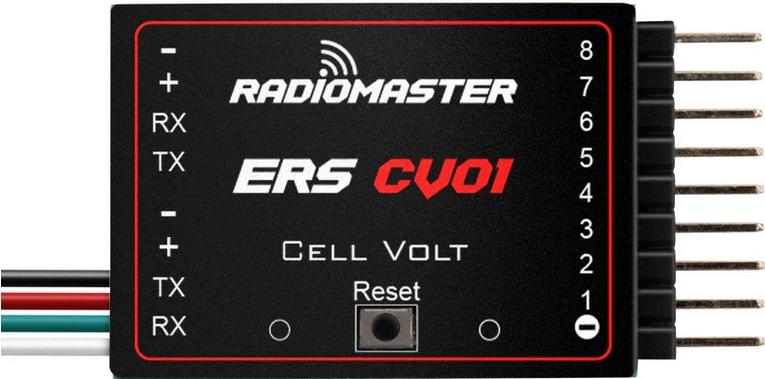

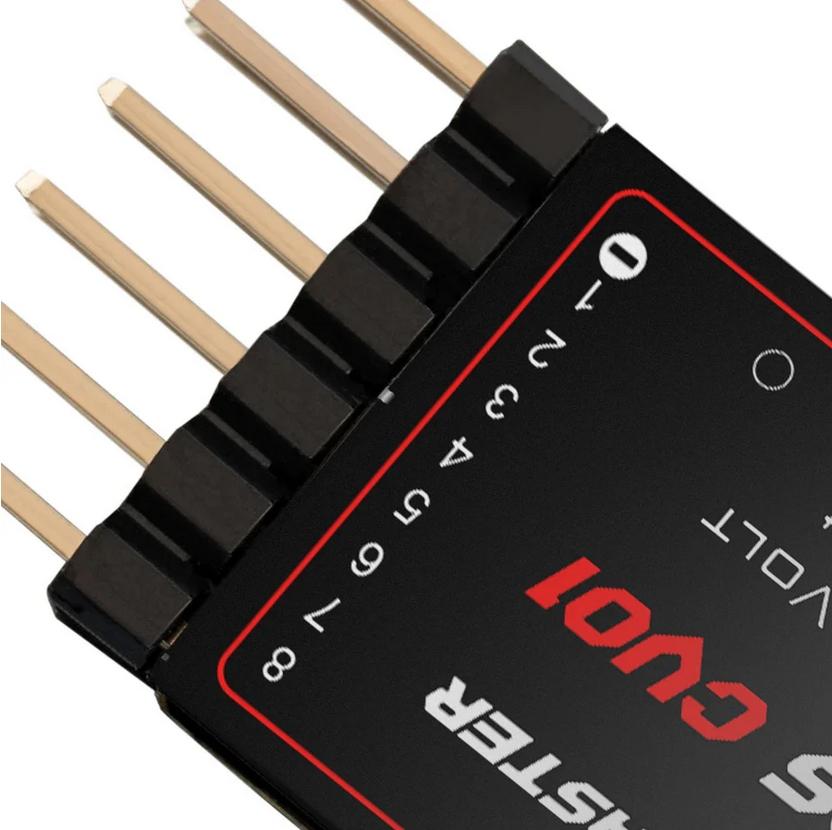

• Plug-and-Play Balance Port Connection: Easily connects to the battery’s balance port for accurate cell-level voltage readings.
• Future-Ready Pass-Through: Includes an in-and-out port to daisy-chain additional ERS telemetry sensors as your setup grows.
• Seamless ExpressLRS Integration: Designed to work effortlessly with compatible ER series ExpressLRS PWM receiver.

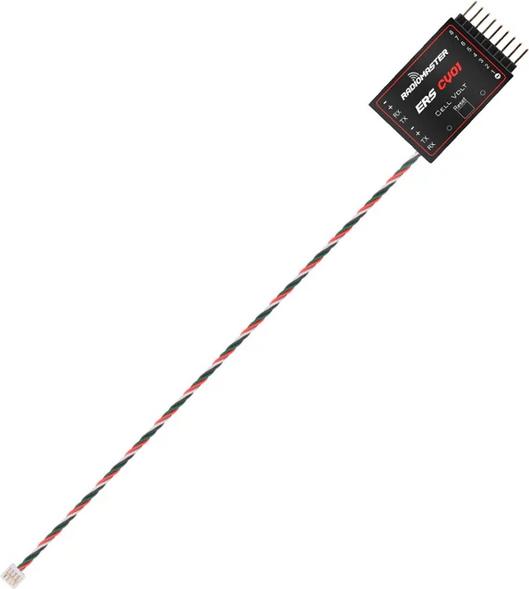

The ERS-CV01 Cell Voltage Sensor is a compact, plug-and-play telemetry module for use with compatible ExpressLRS receivers. Just connect the sensor to your battery’s balance port, and it will monitor the real-time voltage of each cell, transmit the data via the ExpressLRS receiver, and display it directly on your EdgeTX radio.

As part of the ERS sensor family, the ERS-CV01 also supports pass-through expansion, allowing easy daisy-chaining with additional telemetry modules.
