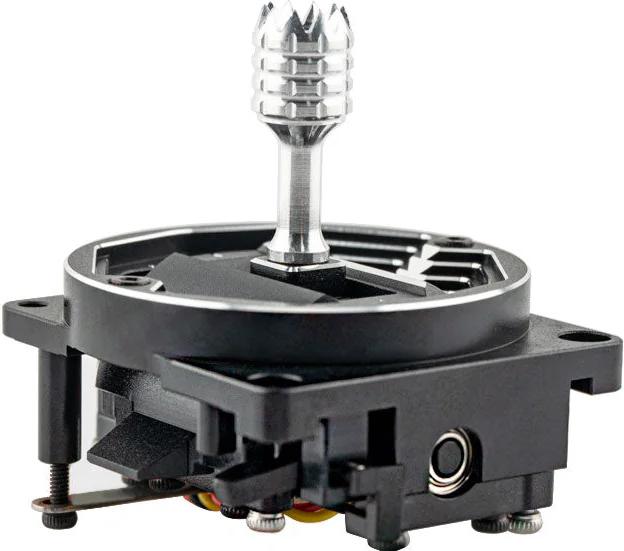

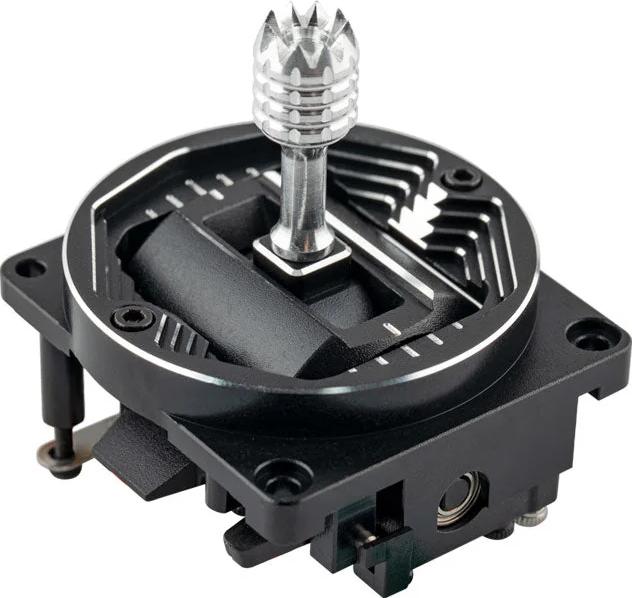

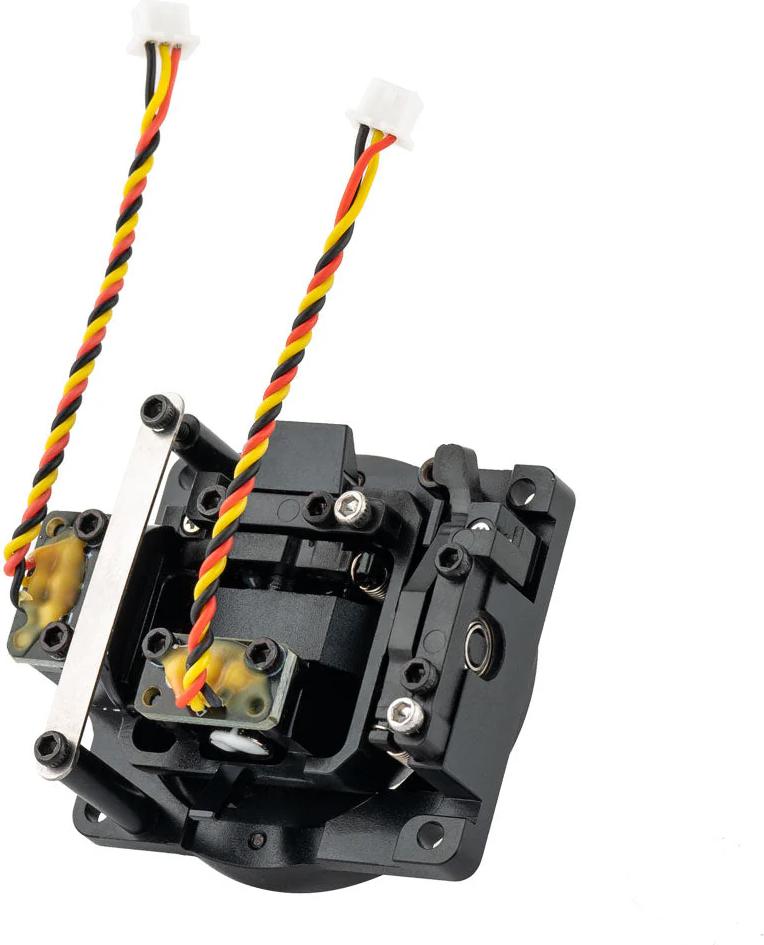

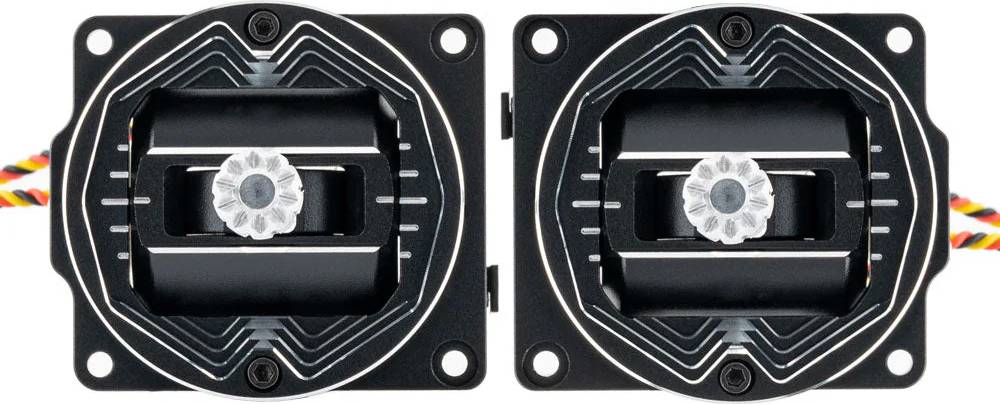

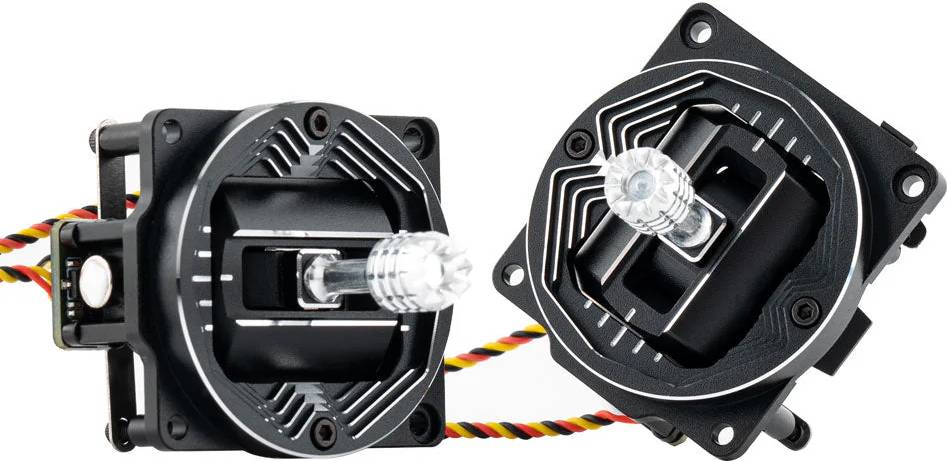

AG01 NANO CNC Hall Effect Gimbal Set for Pocket Radio (2)

Features:

• Made with billet CNC aviation grade aluminum for superior durability and outstanding looks
• Non contact hall sensors with precise centering for accurate control
• Quad precision bearings for unparalleled feel
• Adjustable vertical travel angle (Min. 38°, Max. 54°)
• AG01 NANO Gimbal is specifically designed for the smaller POCKET radio


Specifications:

• Item: AG01 NANO CNC Hall Effect Gimbal
• Sensor type: Non-contact hall effect
• Working voltage: DC 3.3V
• Linearity: Real-time (No latency)
• Adjustable vertical travel range: 38°- 54°
• Self-centering adjustment: Yes
• Mode adjustment: Yes
• Adjustable tension: Yes
• Bearing: Quad precision bearings
• Temperature range: -20°C-85°C
• Size: 42*37*43mm
• Weight: 32g(±0.3g)

What's in the Box:

• 2 * AG01 NANO CNC Hall CNC Gimbal
• 2 * L-shaped Hexagon Socket Screwdriver
• 4 * Hard Tension Spring
• 8 * PB2*6 Screw
• 2 * CM1.6*3 screw
• 2 * Manual


Precision Engineering Meets Unparalleled Control!

Crafted from billet CNC aviation-grade aluminum and equipped with quad precision ball bearings, the AG01 Nano gimbals deliver unparalleled performance and customization. Experience effortless maneuverability with customizable movement angles ranging from 38° to 54°. Sense the Pinpoint Accuracy with High-speed, high-precision, no-contact Hall effect sensors ensures razor-sharp accuracy and effortless centering. Feel the butter-smooth action from the quad precision ball bearings delivering silky-smooth operation for a truly intuitive flying experience.
