FEATURES
Type: AG01 Full CNC Hall Gimbal
Full CNC Gimbal
Product model: AG01
Sensing type: Hall
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable travel range: 38°—54°
Adjustable mode: Yes
Adjustable tension: Yes
Quad bearing: Yes
Temperature range: -20°c-85°c
Size: 60*53*56mm
Weight: 82g
Designed and tested for over a year, the AG01 gimbals have been in development with our engineers and champion pro pilots such as MCK, Alex Campell, Noical, Veysi.FPV, AZFPV, Xiao Zheng, and Long XL to meet the demanding requirements of the world’s most competitive racing events.
The AG01 is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16s to the next level.
Package Includes

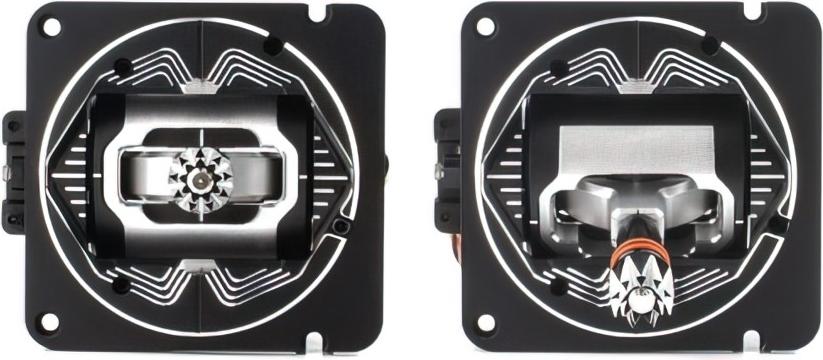

2 * AG01 Full CNC Hall Gimbal (Centering / Throttle)
2 * TX16s Softer Tension Spring Set
2 * Hexagon socket screwdriver
2 * Manual
