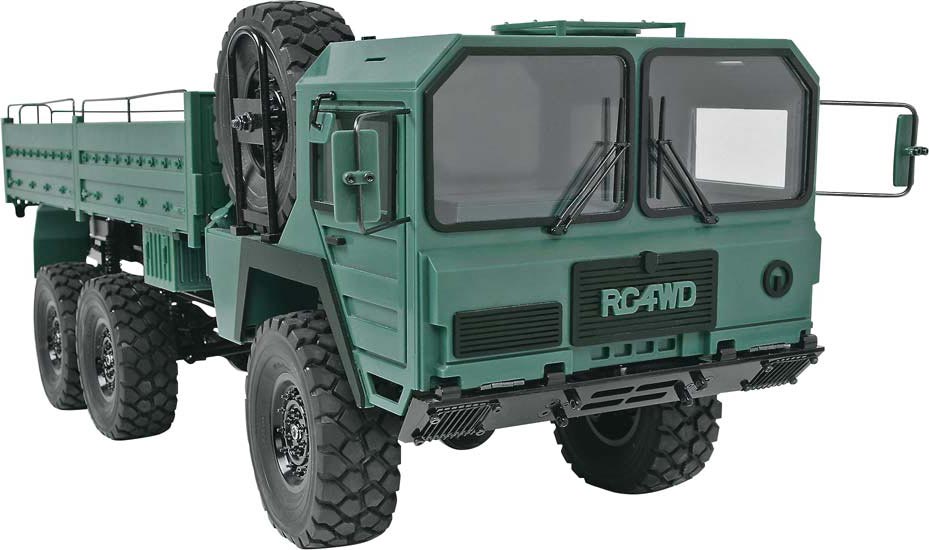

Beast II 6X6 Truck RTR
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
But only from... RC FOUR WHEEL DRIVE (RC4WD)
All items from... RC FOUR WHEEL DRIVE (RC4WD)
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
- Custom Designed for True to Scale Looks
- Realistic Aluminum Ladder Frame Chassis
- R3 Scale 2 Speed Transmission
- Center Mounted Realistic 4x4 Transfer Case
- Cast Metal Axles with Locked Differentials
- 3 Link Front and 8 Link Rear Suspension
- Humvee 1.9" Internal Beadlock Wheels
- Mil-Spec ZXL 1.9" Tires
- Chassis Mounted Steering Servo
- Dual Spring 80mm Scale Black Shocks
Are you ready for the end of days? The opportunities are limitless with the Beast II Truck Kit! Sunday driver to world domination. It's up to the imagination to complete your Beast II.
The Beast II has unmatched scale detail, allowing for a realistic model or a true performance oriented 6x6 trail truck.
The Beast II is built with engineering and design first. Packed with great products like the R3 2 speed transmission, Yota II axles, Triton transfer case, Mil-Spec ZXL tires and 1.9" Humvee beadlock wheels.
There are no better options! Beast II... What's in store for you?
Triton Transfer Case
Ratio - 1:1 Gearing .8 Mod Hardened Steel Gears, 8 Bearing Design, Cast Casing
All New R3 Scale 2 Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratios: 1.78:1
Gears - Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
All New Cast Yota II Axles
Ratio: 15/40 = 2.67:1 Width at Hex 180.5mm
Beast II Suspension
Double Triangulated 8 Link Rear Suspension
3 Link Front Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Wheels
Humvee 1.9" Internal Beadlock Wheel
Hub: Hex Type
Width: 25mm
Back Spacing: 16mm
Bumpers
Cast Metal, Lightweight
|
|
