1S High Capacity Sanwa M17 LiPo Transmitter Battery (3.7V/5500mAh

Safety Info:

• DO NOT leave the battery in your model when charging
• DO NOT leave unattended when charging
• ALWAYS balance charge the battery
• ALWAYS use a LiPo charging bag
• YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
• YOU MUST not over discharge the Li-Poly battery pack
• READ & UNDERSTAND the instructions carefully before operating this battery

Specifications:

• Voltage: 3.7V
• Capacity: 5500mah
• Chemistry: Lithium Polymer
• Connector: JR
• Charge Rate: 1C
• Dimension (LxWxH): 79x46.5x12mm
• Weight: 94g

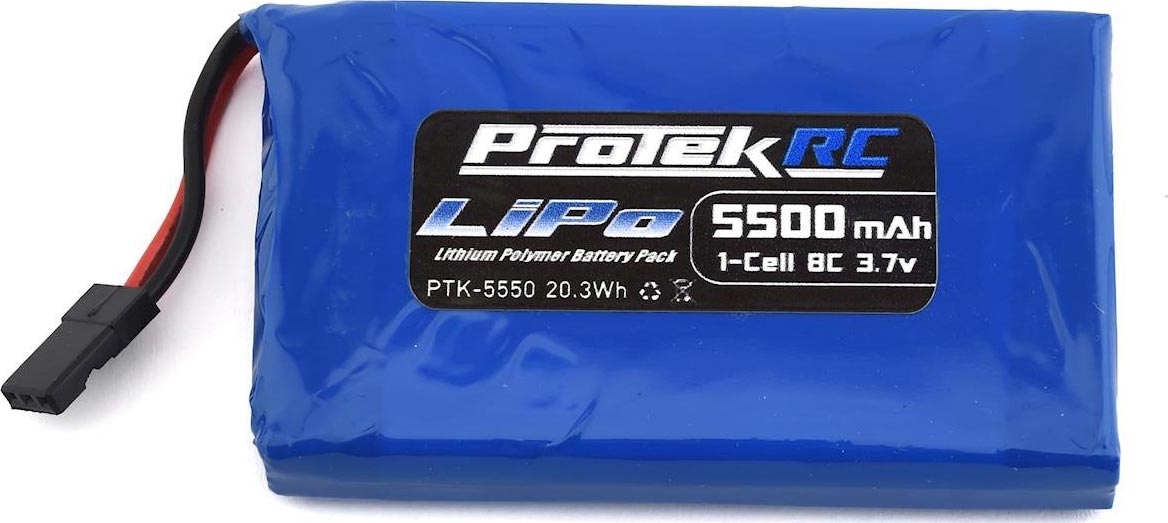

This is the ProTek R/C High Capacity 1S Transmitter Battery with 5500mAh of capacity, for use with the Sanwa M17 Surface Transmitter. This light weight Li-Poly transmitter battery will help to dramatically extend the run time that your transmitter can offer, which is great for long days at the field!

How should the battery be inserted into the transmitter?
A suitable foam should be used to pad the battery in the transmitter battery compartment to help hold the battery in place and prevent it from moving around. Place a piece similar in size to the battery into the transmitter battery housing under the battery, and then while pressing lightly on the battery, slide the cover over the battery.
