Sheathed T-Style Plug (2 Male)
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
36 A
Rated Current:
60 A
Max Current:
12AWG
Reccomended Wire:
FEATURES

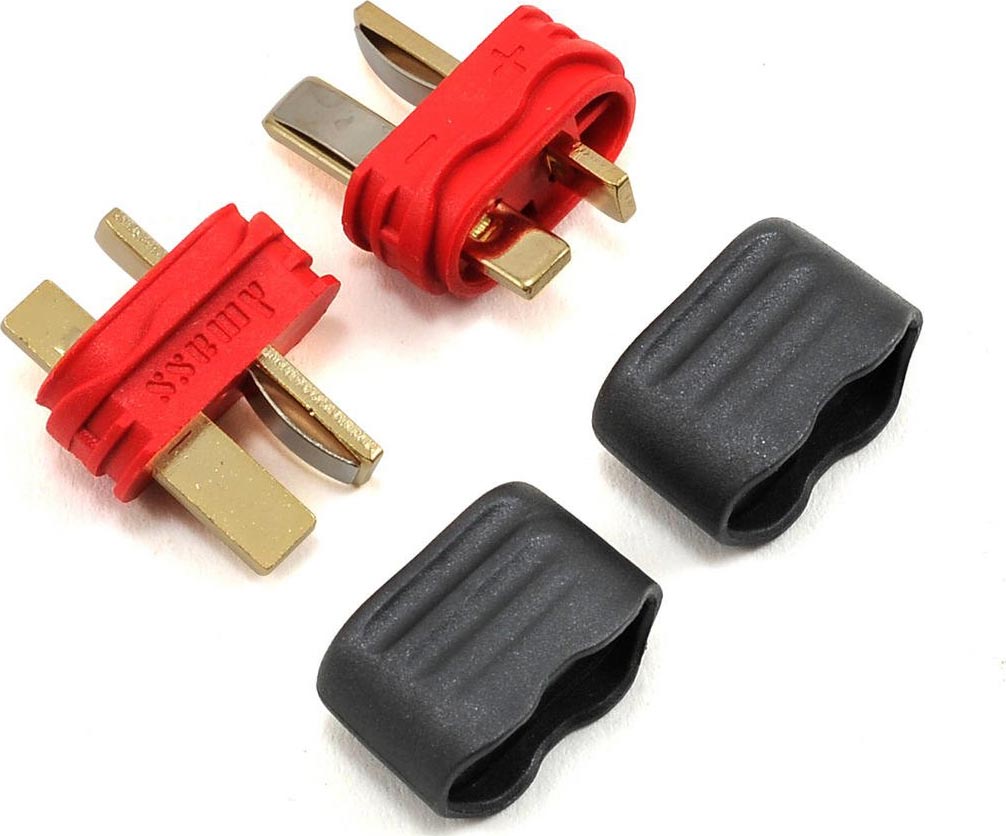

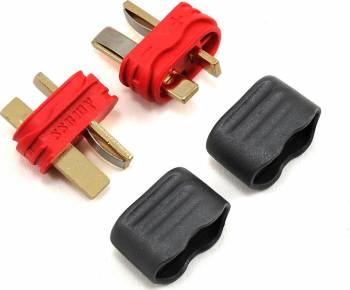

These ProTek R/C Sheathed T-Style Connectors are compatible with any standard generic T-Style plug, as well as Deans Ultra Plugs. These connectors feature a plastic protective sheath that snap onto the back of the connector concealing the solder joint.
Typical t-style plugs use shrink tubing which works fine, but provides a one-time solution. Using the sheath, you can snap it on or off to make any connector changes or modification, as well as create a sleek and professional look.

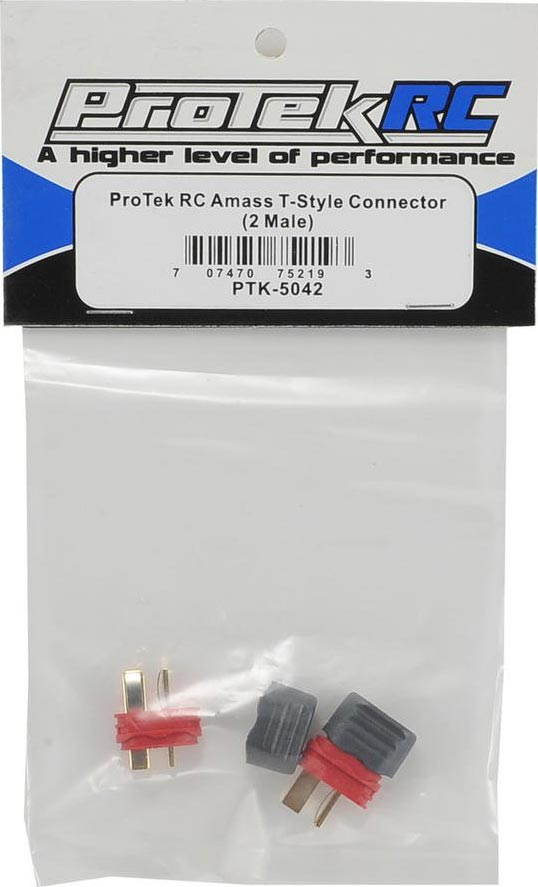

Package includes one male plug, one female plug and two protective sheaths.
Features:
- T-Style connectors
- 60A max current
- Sheathed backing
- Concealed solder joint
- Labeled polarity
- Professional looks
Specifications:
- Rated Current: 36A
- Max Current: 60A
- Internal Resistance: 0.4m
- Net Weight (pair): 5.6g
- Recommended Wire: 12AWG
- Pulling Force: 25N
- Recommended Use: 1000 times
- Rated Temperature: -20°C - 120°C (-4°F - 248°F)
- Material: Brass and gold plated
