SPECIFICATIONS
1/10
Size Class:
25 Tooth
Output Spline:
39.5 mm
Length:
20 mm
Width:
25 mm
Height:
54 g
Weight:
Steel
Geartrain:
Brushless Digital
Motor Type:
6.0-8.4 v
Voltage Range:
307 oz-in
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
381 oz-in
Torque @ 8.4V:
0.05 sec/60°
Speed @ 8.4V:
Low Profile
Type:
FEATURES
Features:
Ideal for 1/10 On-Road and Off-Road Racing Platforms
Brushless motor
High voltage circuitry
Full steel gears
Full aluminum black anodized heat sink case
Single offset servo spline
Includes:

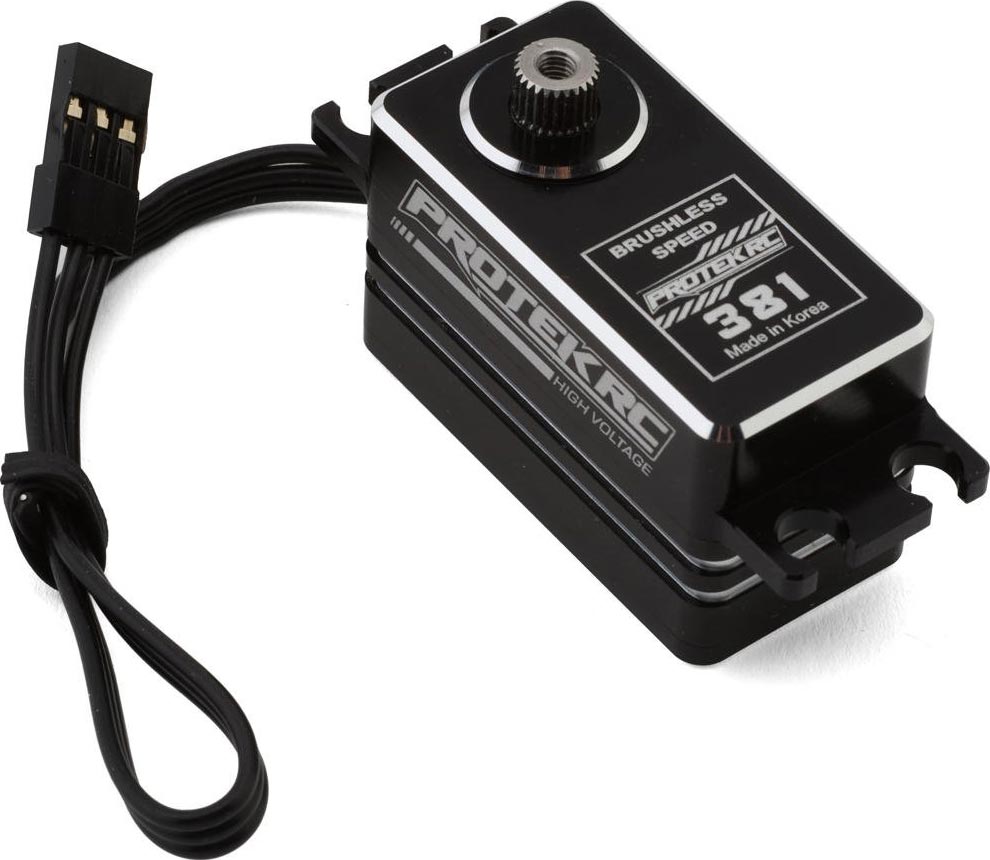

(1) 381 Ultra Low Profile High Speed Brushless Servo

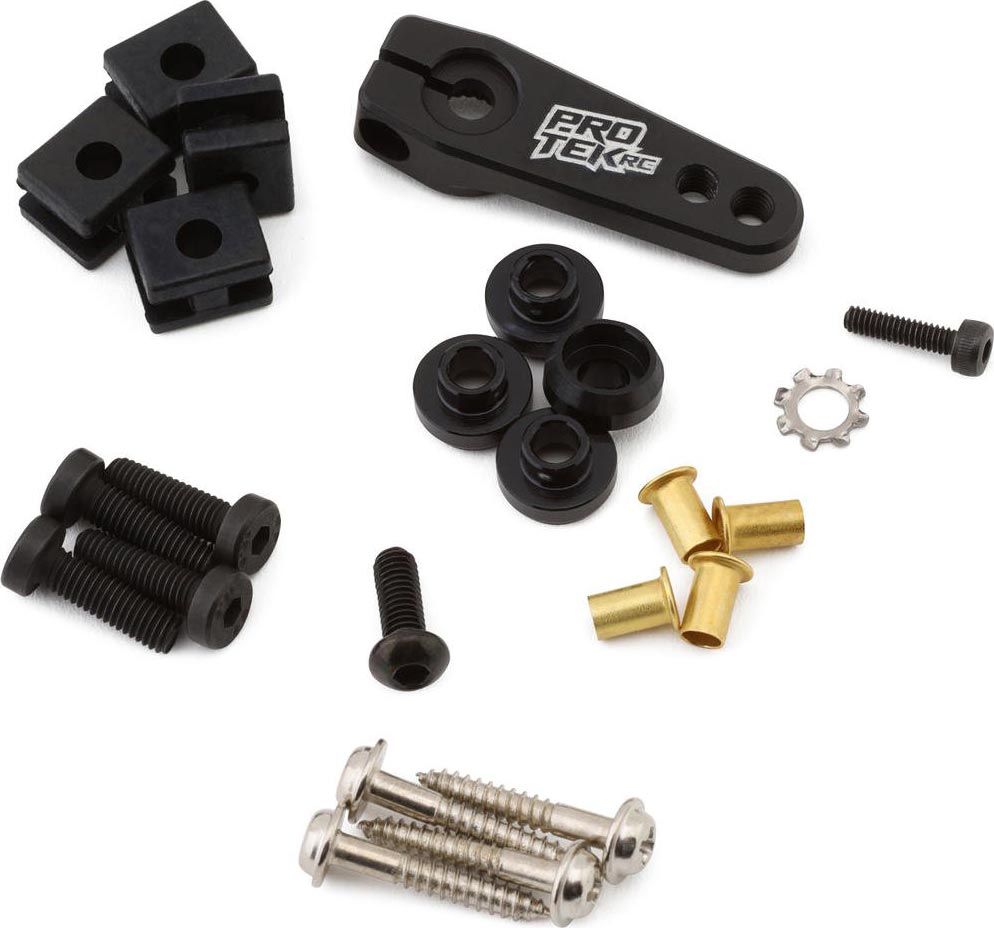

(1) Aluminum clamping servo horn
Servo Hardware and grommets
Size
This High-Performance Racing Servo is specifically designed for 1/10 on-road applications like Formula F1, with its ultra-low profile design allowing it to fit seamlessly into tight chassis spaces. Its compact size ensures optimal weight distribution, enhancing the performance of high-precision on-road vehicles.
Power & Gears
The ProTek RC PTK-381 ULP servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.
Application & Design
The ProTek ULP servo is a perfect fit for 1/10 F1 chassis, where space is often minimal due to tight servo fitment. Its ultra-low profile and sleek, squarish design ensure easy integration into narrow compartments, optimizing chassis balance and weight distribution.
