SPECIFICATIONS
25 Tooth
Output Spline:
41 mm
Length:
21 mm
Width:
39.5 mm
Height:
81 g
Weight:
Steel
Geartrain:
Brushless Digital
Motor Type:
4.8-8.4 v
Voltage Range:
880 oz-in
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
1080 oz-in
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
FEATURES
Features:
Ideal for a variety of applications
Waterproof up to 1 meter
880 oz-in of torque @ 6.0V, and .16 transit speed
1080 oz-in of torque @ 8.4V, and .11 transit speed
Brushless motor
High voltage circuitry
Full steel gears
Full aluminum black anodized heat sink case
Dual ball bearings
260mm servo lead

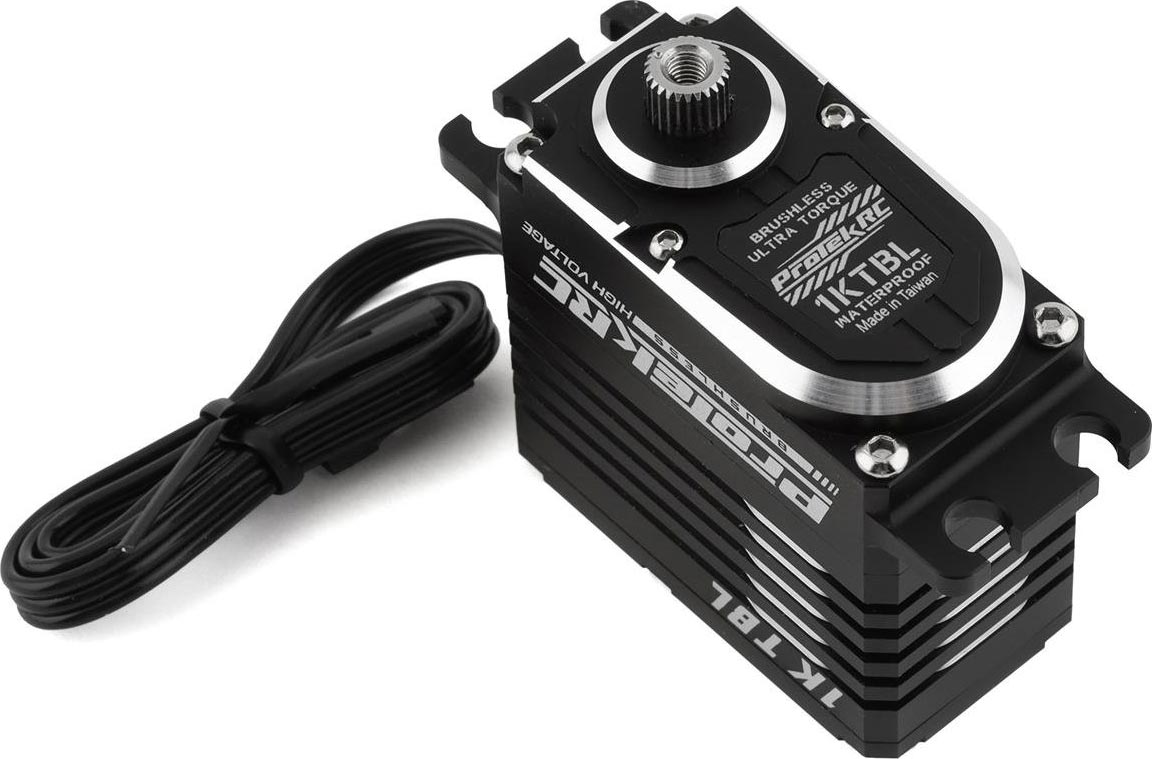

The ProTek 1KTBL was developed to satisfy the needs of torque thirsty enthusiasts. With the ability to deliver over 1000 oz-in of torque and .11 transit speeds at 8.4V, there aren’t many servo options that can compete. Competition rigs, heavy scalers and bashers can take advantage of what the 1KTBL delivers. Even large scale surface models and airplanes can benefit from the insane torque the 1KTBL can produce.
All this power means nothing without durability – and the Protek 1KTBL punches far outside its weight class. This servo offers the power, reliability and durability needed to keep the competition on the ropes. The proven gasket system allows waterproof protection up to 1-meter, so it will go the distance in any condition. A full steel gear train, 25T output shaft and full aluminum machined heat sink case finish off the package to create a tough servo that is perfect for demanding applications. The 1KTBL delivers power in excess – with the durability and reliability that make ProTek R/C servos a an easy choice for enthusiasts that expect the most from their rigs.
