SPECIFICATIONS
1/10 & 1/8
Size Class:
25 Tooth
Output Spline:
Metal
Geartrain:
Brushless Digital
Motor Type:
4.8-7.4 v
Voltage Range:
458 oz-in
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
535 oz-in
Torque @ 7.4V:
0.08 sec/60°
Speed @ 7.4V:
FEATURES
Features:
Ideal for any 1/10 to 1/8 surface application that requires lightning fast response

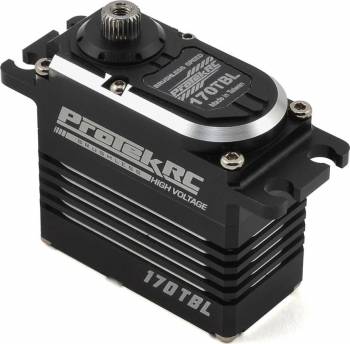

Full aluminum black anodized case
High voltage circuitry
0.09 transit speed, and 458 oz-in of torque @ 6.0V
0.08 transit speed, and 535 oz-in of torque @ 7.4V

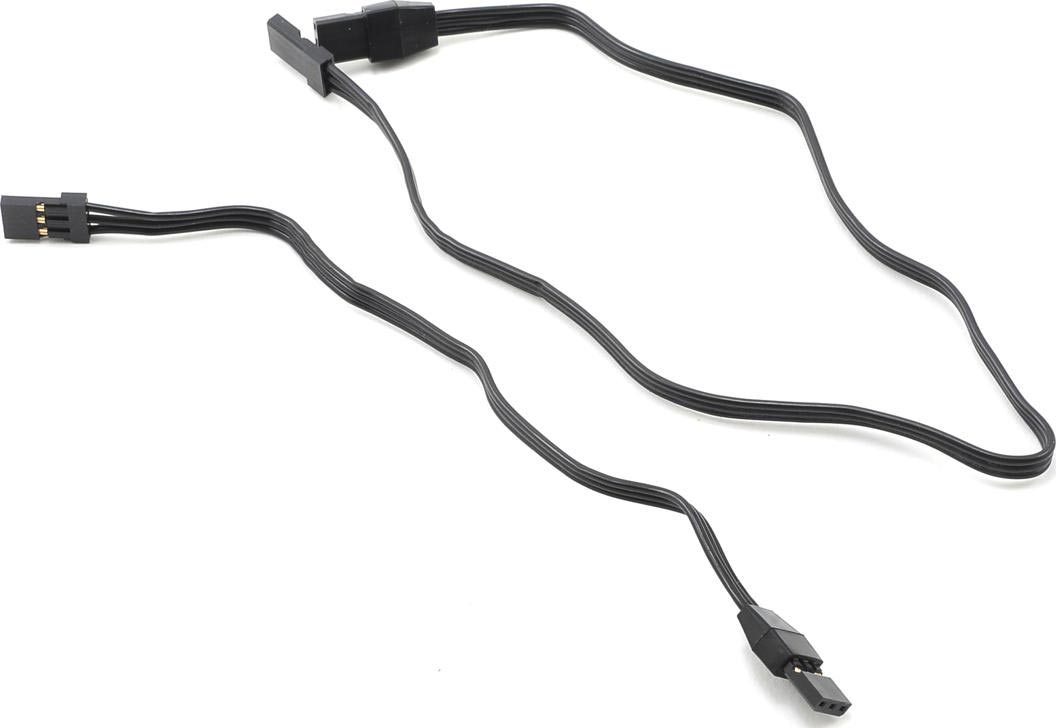

150mm and 300mm length 22awg detachable servo leads included w/gold plated connectors
Full metal gears and dual ball bearings
Brushless motor
Brushless servo technology has improved by leaps and bounds. Finally, brushless servos can deliver holding power, speed and precision that can compete with a coreless servo. Combine that with the superior efficiency and lifespan of a brushless motor and you have a servo that hits all the marks, with the performance and quality required for a pro level build.
A black anodized aluminum case with aluminum and white accents give this servo a stealthy look that sets it apart from the rest. The aluminum upper case provides bomb proof durability and the heat sink center case offers efficient heat dissipation and helps to reduce weight. The lead wire is detachable, allowing you to easily custom tailor the servo lead to your application, and the package includes both 135mm and 285mm length servo leads. Plus, a full selection of servo arms and mounting hardware are included making installation easy.
NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
