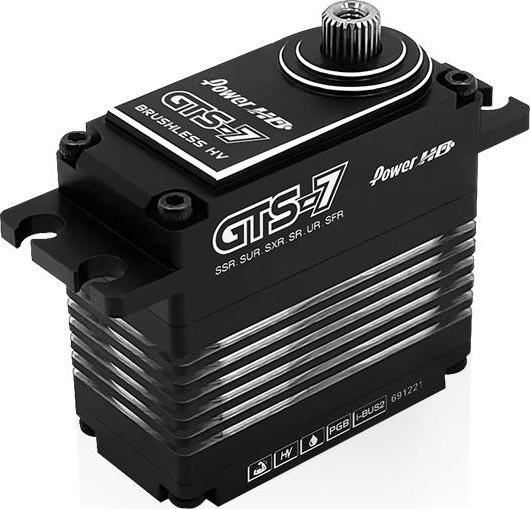

Power HD GTS-7 HV Brushless Servo 70KG 0.10 sec @ 8.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
Dual Ball Bearing
Bearing/Bushing:
40 mm
Length:
20 mm
Width:
38.3 mm
Height:
78 g
Weight:
7075+ Steel

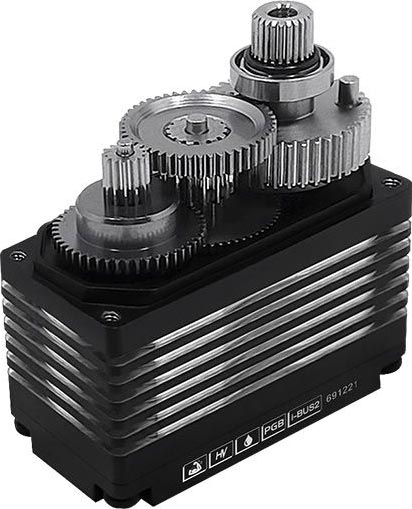

Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
52.0 kg-cm (722.1 oz/in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
66.0 kg-cm (916.6 oz/in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
70.0 kg-cm (972.1 oz/in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
6929188077007 6929188077007
PHDGTS-7
