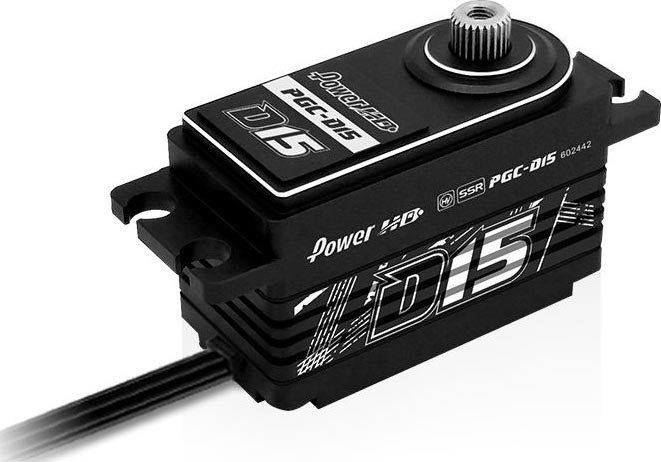

D15 HV Digital Coreless Servo 18.0KG 0.085Sec@8.4V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Ball Bearing x 2
Bearing/Bushing:
25 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
26.3 mm
Height:
55 g
Weight:
Titanium & Steel
Geartrain:
Coreless
Motor Type:
6.0 - 8.4 v
Voltage Range:
13.5 kg-cm (188 oz-in)
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
16.5 kg-cm (229.1 oz-in)
Torque @ 7.4V:
0.095 sec/60°
Speed @ 7.4V:
18 kg-cm (250 oz-in)
Torque @ 8.4V:
0.085 sec/60°
Speed @ 8.4V:
click image to enlarge

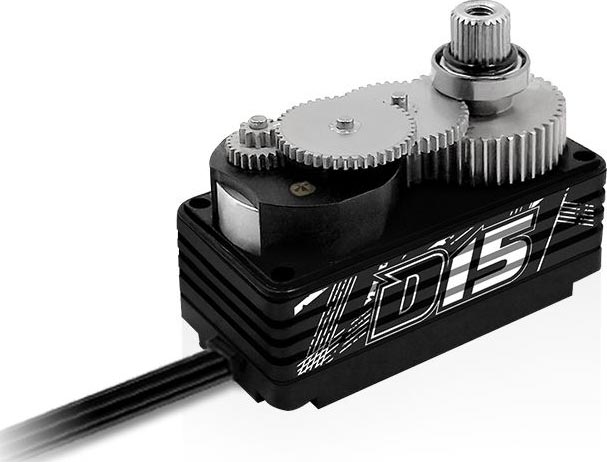

ADDITIONAL PHOTOS
|
6929130015156 6929130015156
PHDD15
