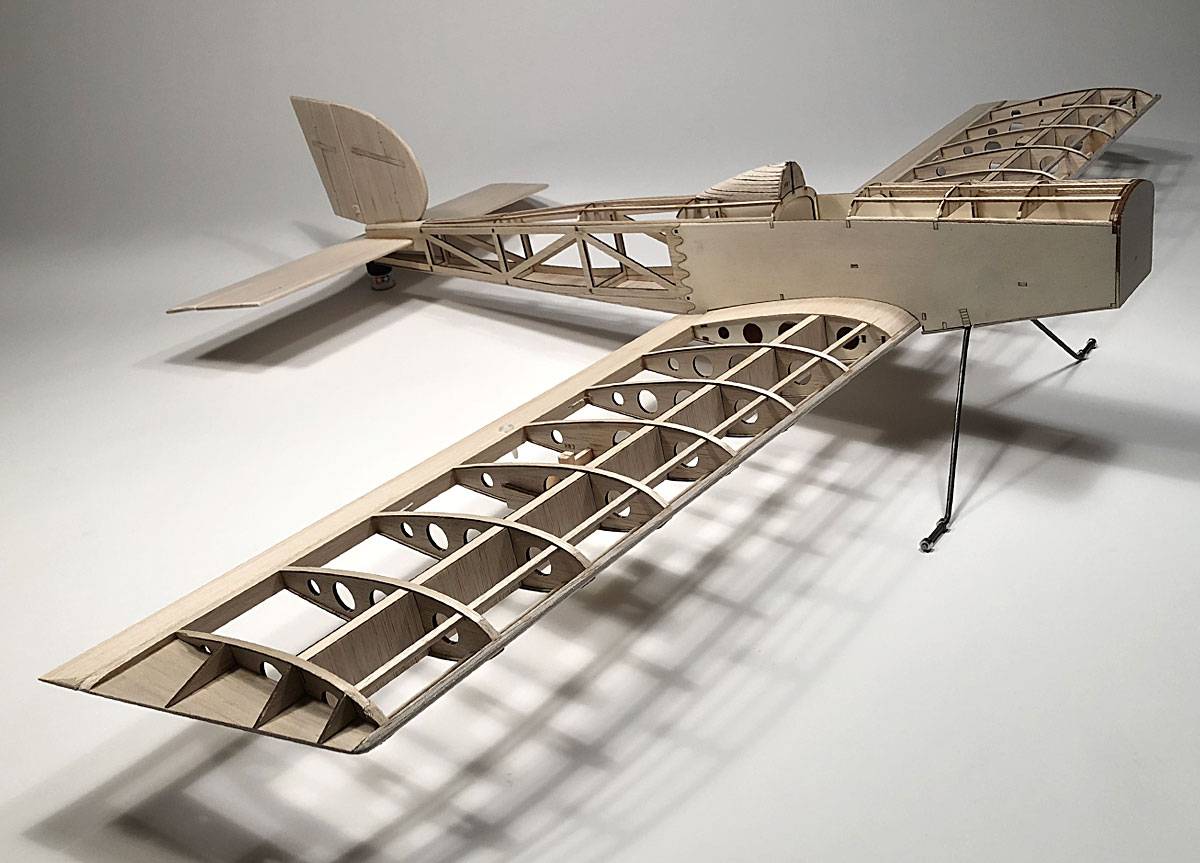

Using updated design techniques and laser-cut precision, we’ve designed this kit so most any modeler can successfully build it in a short amount of time.

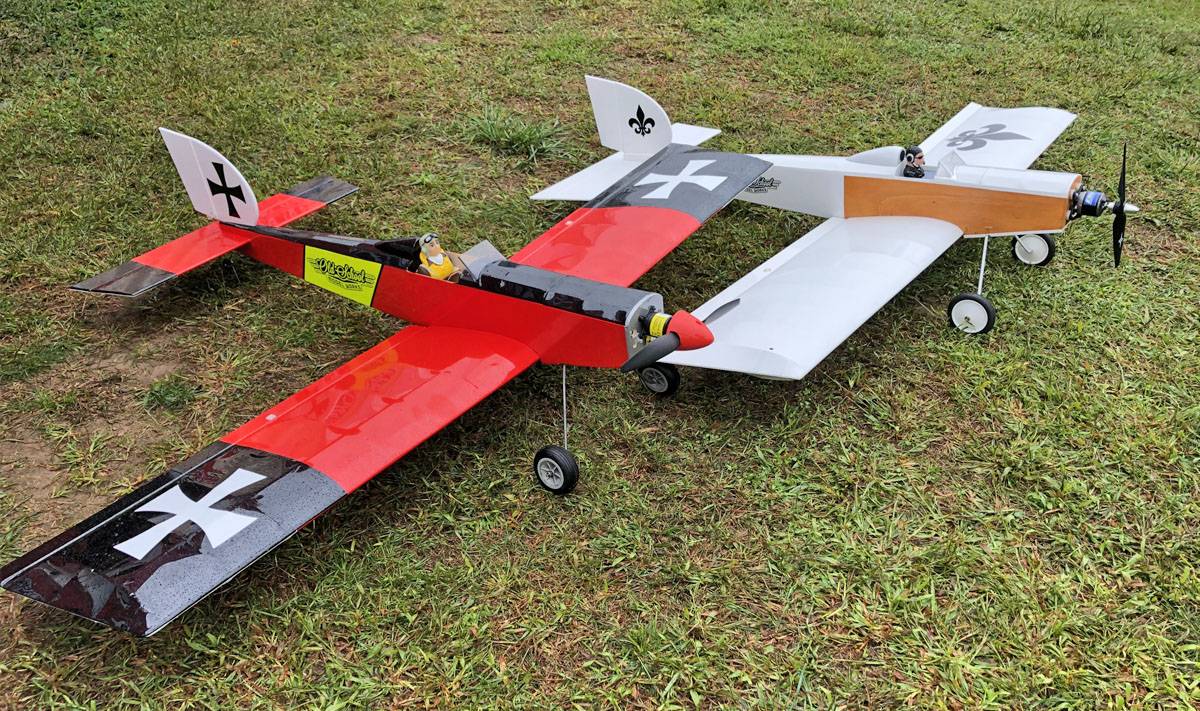

This all-around sport model’s retro design looks great in the air and makes you look like an ace pilot. Loop it, roll it, spin it, snap it, and just have a great time flying it.
Power the Sky Ranger 40 with either an electric or glow powerplant.
We’ve designed the fuselage with a built-in hatch, so you have quick access to either your LiPo batteries or fuel tank. The wing is removable via two bolts from the underside of the model.
Needed To Complete:
• 4 channel radio and servos
• Propeller
• Engine/Motor mount & mounting hardware
• “Y” servo harness (for ailerons)
• Pushrods (two 5” for ailerons, two 24” for elevator & rudder, one 12” for throttle if glow powered)
• Clevises for the pushrods (8 if electric, 10 if glow).
• Two 3” diameter main wheels
• 1 - tailwheel
• Covering - typically 2 rolls
Specifications:
Radio:
• 4 channel system
• 4 40-70 in./oz. servos (Standard servos - similar to HS-311)
• 1 additional servo for throttle, if using a glow engine
Power:
• Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
• Glow ( .40-.45 engine, 6 ounce tank, fuel tubing)
