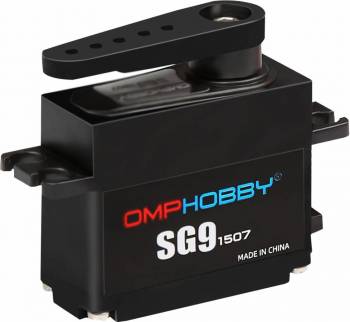

SG9 Servo - Metal Gear w/700mm Wire
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
48.8 mm
Length:
15 mm
Width:
29.3 mm
Height:
6.0-8.4 v
Voltage Range:
6.5 kg-cm
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
8.0 kg-cm
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
9.0 kg-cm
Torque @ 8.4V:
0.09 sec/60°
Speed @ 8.4V:
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
C.DZJ.029
