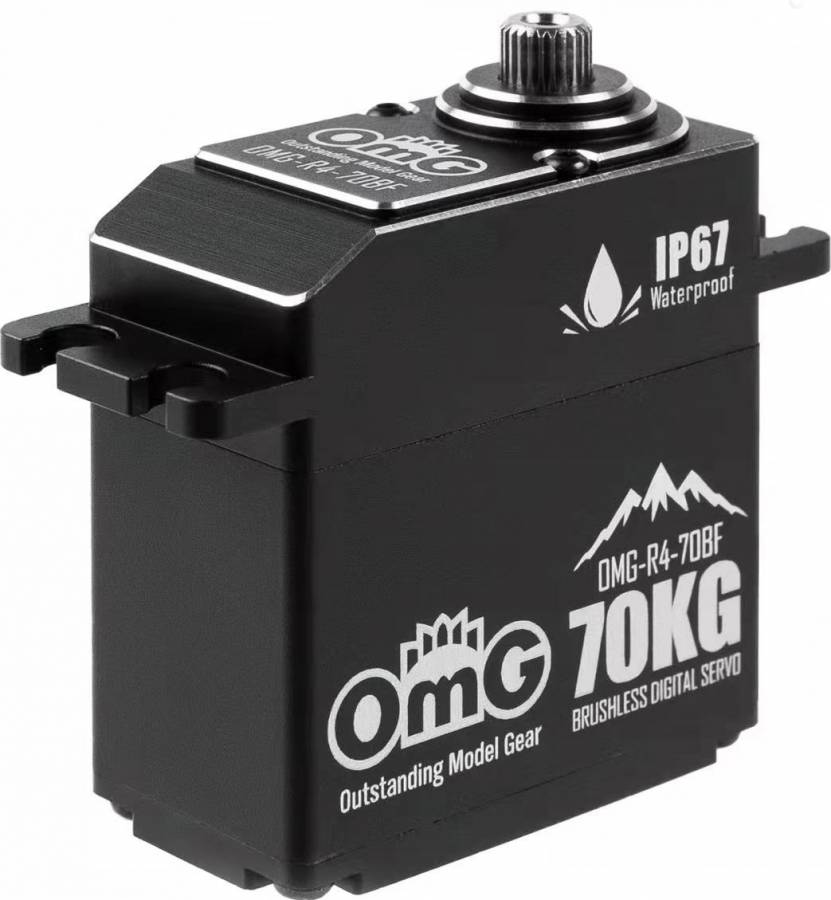

Servo Digital BL Standard SSG WP 70KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
1/8 Car
Application:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
42.5 mm
Height:
84 g
Weight:
Stainless Steel
Geartrain:
6.0 - 8.4 v
Voltage Range:
55 kg-cm (764 oz-in)
Torque @ 6.0V:
0.138 sec/60°
Speed @ 6.0V:
62 kg-cm (861 oz-in)
Torque @ 7.4V:
0.105 sec/60°
Speed @ 7.4V:
70 kg-cm (972 oz-in)
Torque @ 8.4V:
0.095 sec/60°
Speed @ 8.4V:
FEATURES

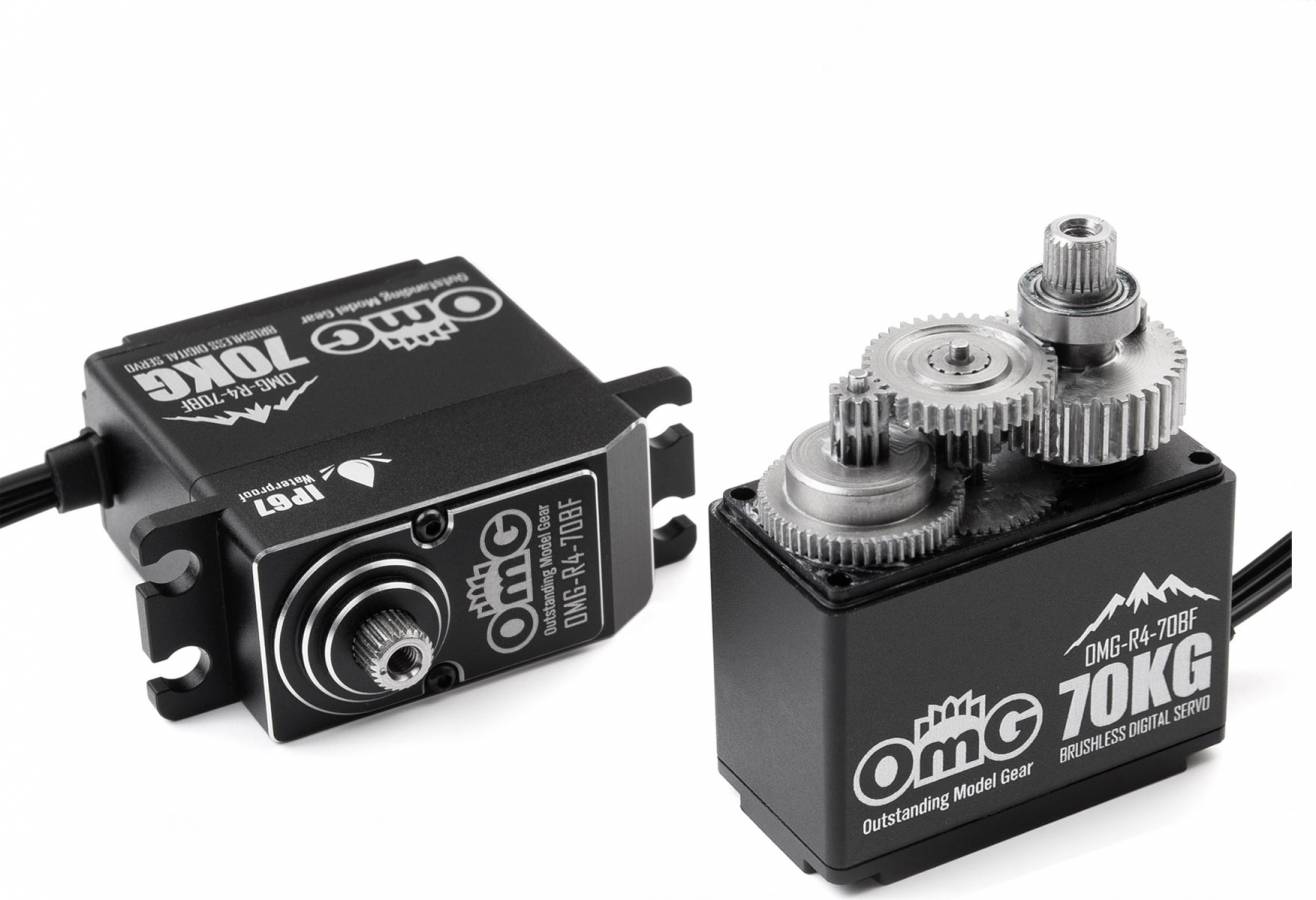

Specially designed for 1:8 RC vehicles and above 60CC large plane. Standard profile, full metal, brushless motor, high voltage servo, full body in CNC, steel gear, waterproof IP67.
