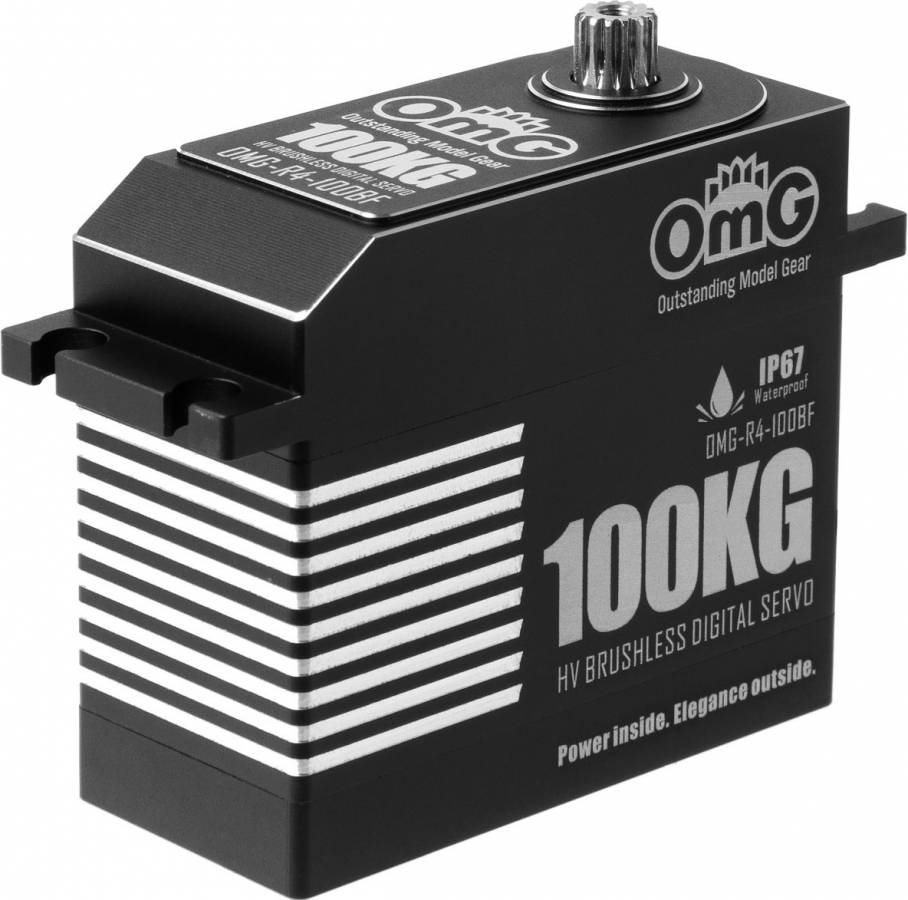

Servo Digital BL Standard SSG WP 100KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/5 Scale
Size Class:
Brushless
Type:
1/5 scale vehicles
Application:
Universal
Connector Type:
Bearing
Bearing/Bushing:
15 Tooth
Output Spline:

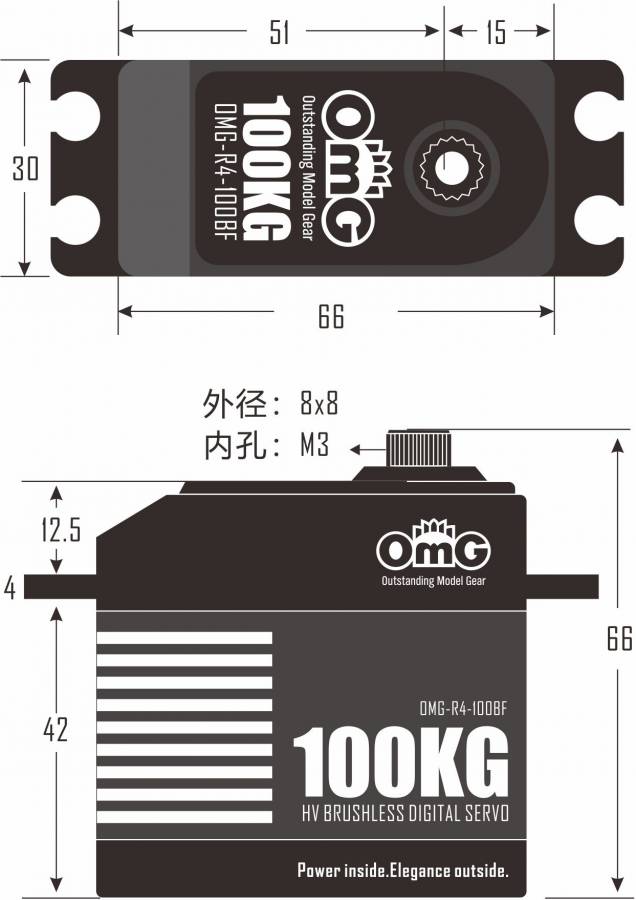

66 mm
Length:
58.5 mm
Width:
30 mm
Height:
281 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
11.1 - 15 V
Voltage Range:
90 kg-cm (1250 oz-in)
Torque @ 11.1V:
0.18 sec/60°
Speed @ 11.1V:
100 kg-cm (1389 oz-in)
Torque @ 12.6V:
0.17 sec/60°
Speed @ 12.6V:
120 kg-cm (1667 oz-in)
Torque @ 15.0V:
0.15 sec/60°
Speed @ 15.0V:
