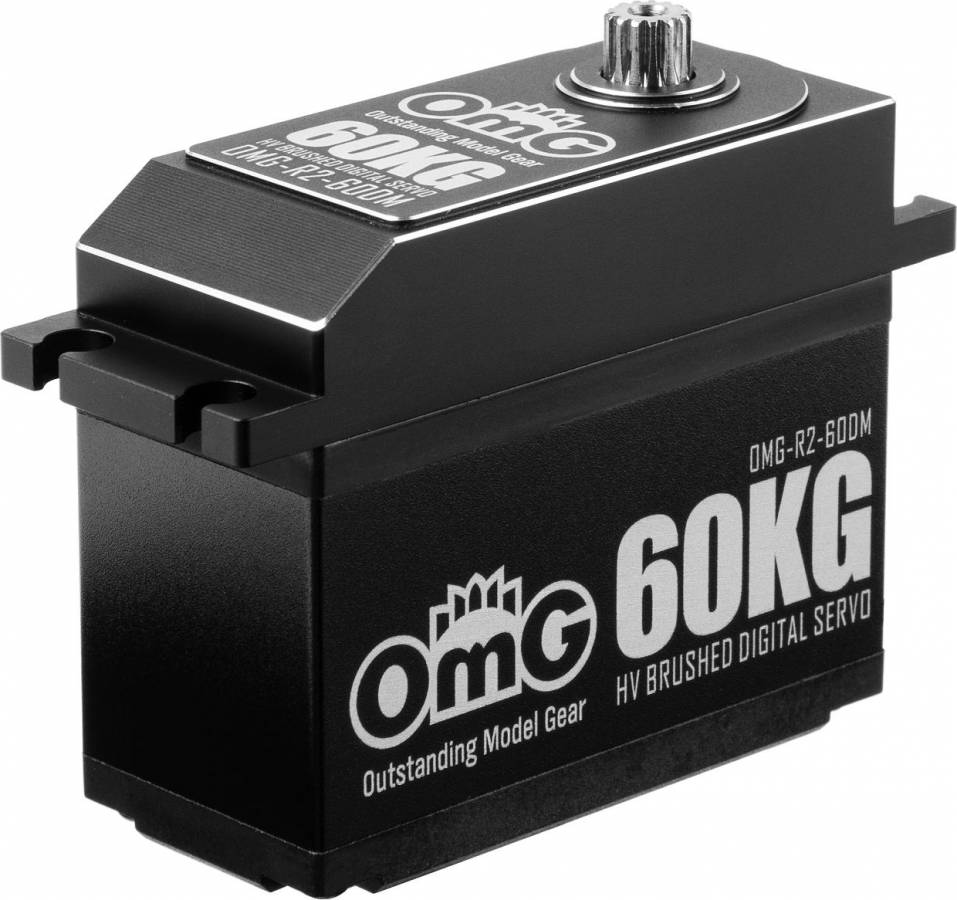

Servo Digital Brushed Standard SSG WP 60KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
1/5 Scale
Size Class:
Brushed
Type:
1/5th scale buggy
Application:
Universal
Connector Type:
Bearing
Bearing/Bushing:
15 Tooth
Output Spline:

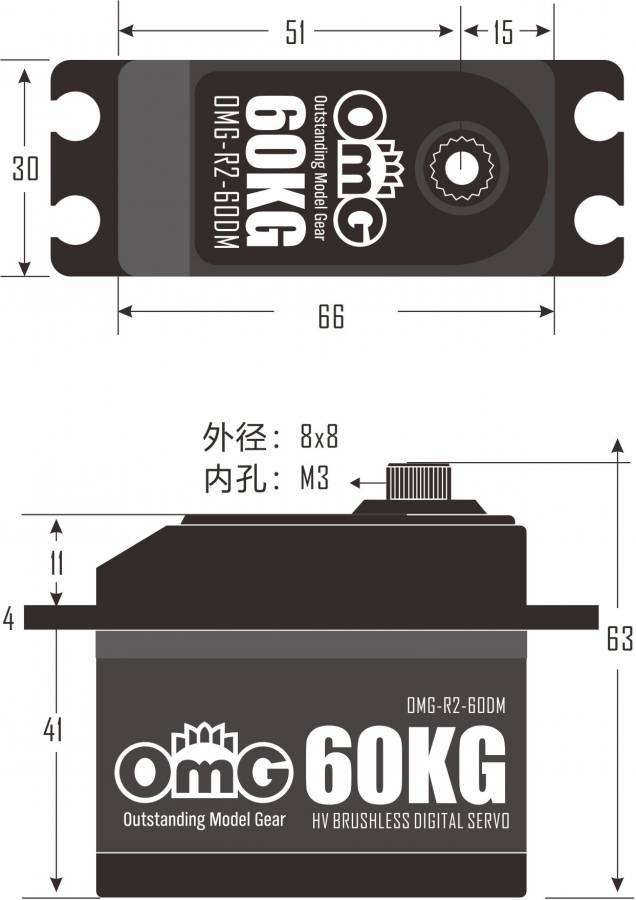

67 mm
Length:
57 mm
Width:
30 mm
Height:
210 g
Weight:
Metal
Geartrain:
Brushed
Motor Type:
7.4 - 8.4 v
Voltage Range:
65 kg-cm (903 oz-in)
Torque @ 7.4V:
0.18 sec/60°
Speed @ 7.4V:
70 kg-cm (972 oz-in)
Torque @ 8.4V:
0.17 sec/60°
Speed @ 8.4V:
