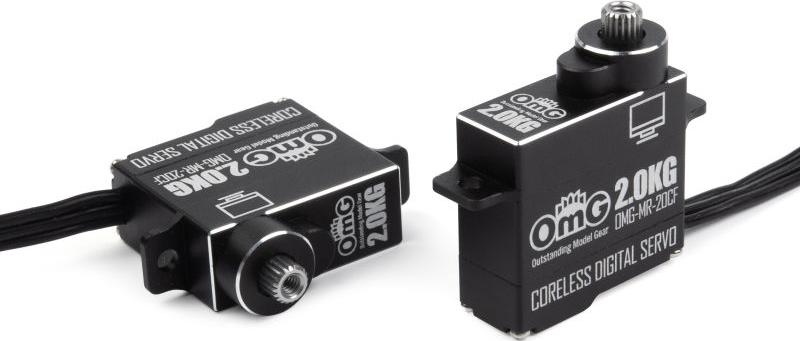

Servo Digital Coreless Micro Titanium Car/Truck 2KG 7g
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
0.79 in
Length:
0.31 in
Width:
0.74 in
Height:
0.25 oz
Weight:
Coreless
Motor Type:
4.8-8.4 v
Voltage Range:
28 oz-in
Torque @ 4.8V:
0.072 sec/60°
Speed @ 4.8V:
31 oz-in
Torque @ 6.0V:
0.065 sec/60°
Speed @ 6.0V:
35 oz-in
Torque @ 7.4V:
0.055 sec/60°
Speed @ 7.4V:
42 oz-in
Torque @ 8.4V:
0.050 sec/60°
Speed @ 8.4V:
20 Tooth
Output Spline:
click image to enlarge

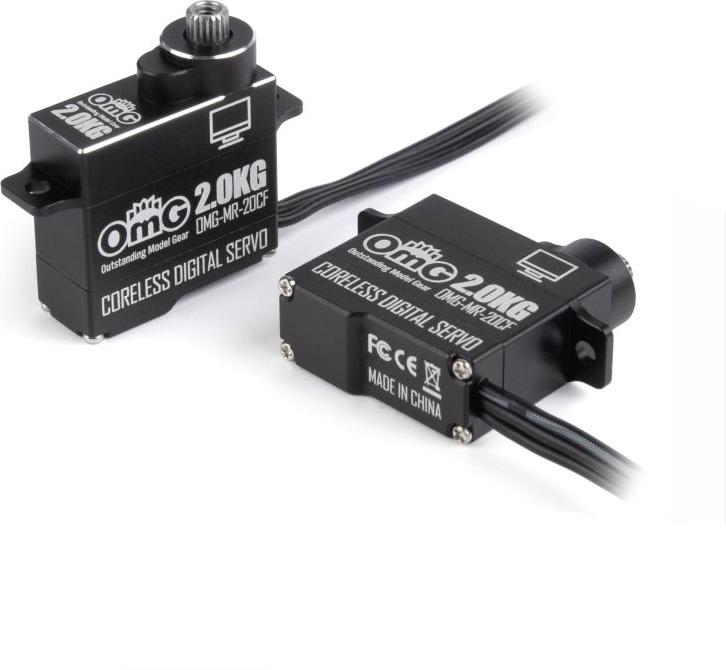

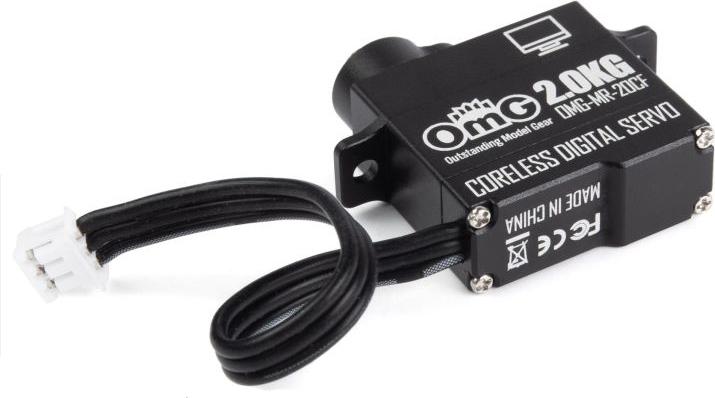

ADDITIONAL PHOTOS
|
|
