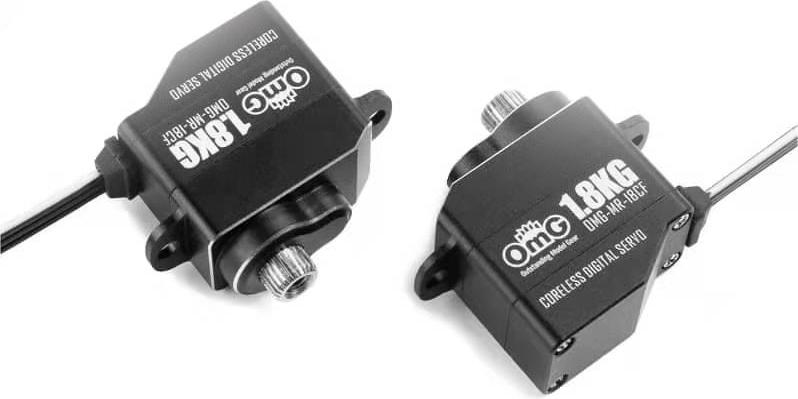

Servo Digital Coreless Micro SSG Car/Truck 1.8KG
|  |   click to enlarge |
This live feed
                    information is to be used as a general guide to current inventory. There is no guarantee of
                    availability.

            SPECIFICATIONS

						    Micro
						  Size Class:

						    1/28 - 1/18 Car
						  Application:

						    25 Tooth
						  Output Spline:

						    20 mm
						  Length:

						    11.3 mm
						  Width:

						    22.1 mm
						  Height:

						    11.5 g
						  Weight:

						    Stainless Steel
						  Geartrain:

						    4.8 - 6.0 v
						  Voltage Range:

						    1.6 kg-cm (22 oz-in)
						  Torque @ 4.8V:

						    0.07 sec/60°
						  Speed @ 4.8V:

						    1.8 kg-cm (25 oz-in)
						  Torque @ 6.0V:

						    0.065 sec/60°
						  Speed @ 6.0V:
						FEATURES
					Micro size, full metal, coreless, digital servo, fit for MiNI-Z,1/18 - 1/24 - 1/27 - 1/28 rc cars
