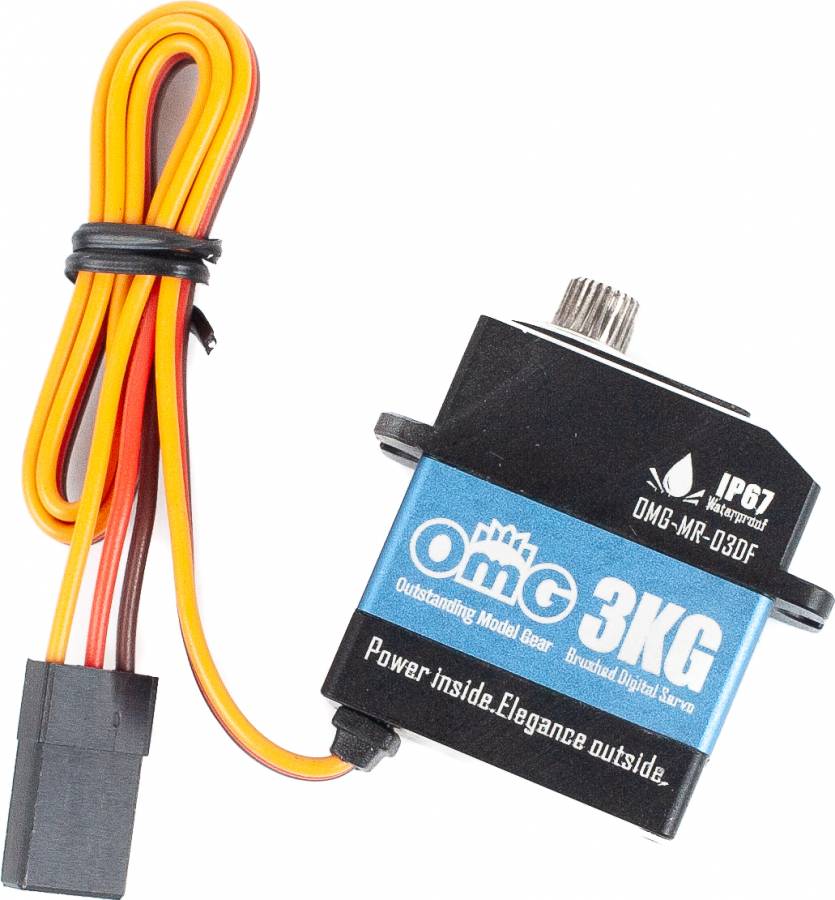

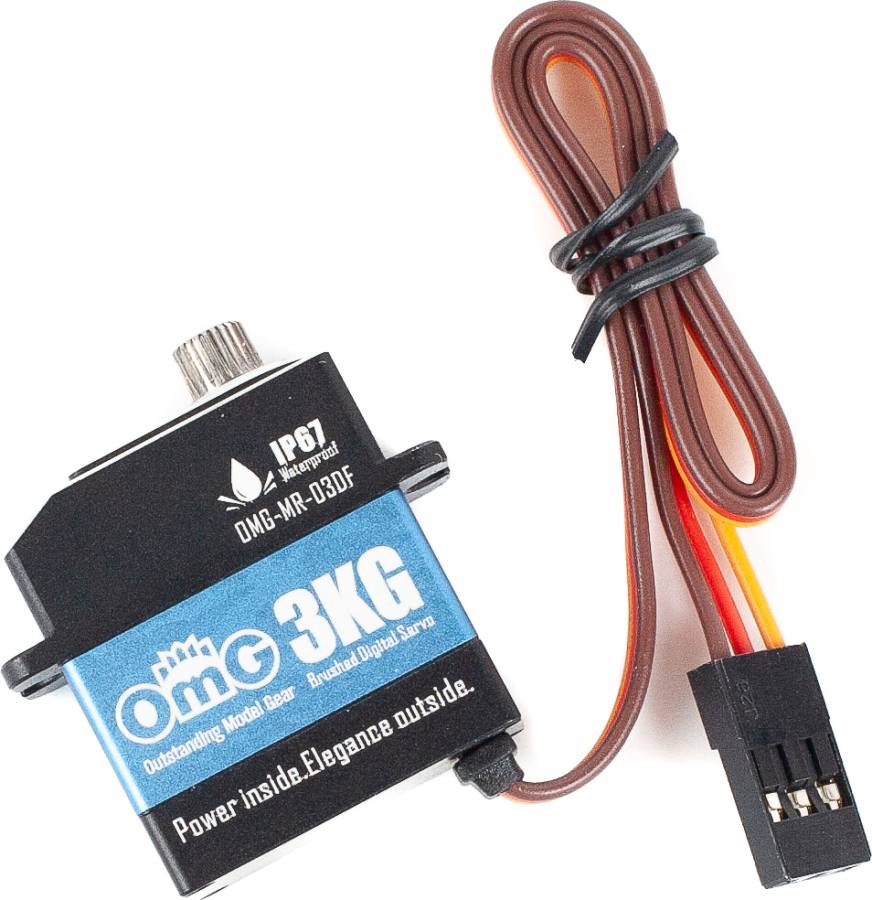

Servo Digital Brushed Micro SSG 3KG Shift Blue
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Diff Lock or Gear Change
Application:
25 Tooth
Output Spline:
23 mm
Length:
13 mm
Width:
26 mm
Height:
20 g
Weight:
Stainless Steel
Geartrain:
4.8 - 6.0
Voltage Range:
2.5 kg-cm (35 oz-in)
Torque @ 5.0V:
0.12 sec/60°
Speed @ 5.0V:
3.2 kg-cm (44 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
FEATURES
Micro size, full metal, brushed, waterproof, digital servo, full case in CNC, precise engraving, as the diff locking or gear change servo. Fit for TRAXXAS series carsTRX-4/3pcs , TRX-6/3pcs,for AXIAL series SCX10AXI03003/2pcs, SCX10 III AXI03006/2pcs,Capra 1.9 UTB AXI03004/2pcs. This servo is also a great choice to upgrade the steering servo in any of the Arrma Groms, but requires the 25T Grom Servo saver from Hot Racing (HRAGRM48SH25T)
