Servo Digital Coreless Mini MG 10KG Aircraft/Heli 24g
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
35.8 mm
Length:
15.2 mm
Width:
29.5 mm
Height:
24 g
Weight:
Metal
Geartrain:
4.8-8.4 v
Voltage Range:
4.8 kg-cm
Torque @ 4.8V:
0.100 sec/60°
Speed @ 4.8V:
8.5 kg-cm
Torque @ 6.0V:
0.095 sec/60°
Speed @ 6.0V:
9.5 kg-cm
Torque @ 7.4V:
0.085 sec/60°
Speed @ 7.4V:
10 kg-cm
Torque @ 8.4V:
0.075 sec/60°
Speed @ 8.4V:
FEATURES

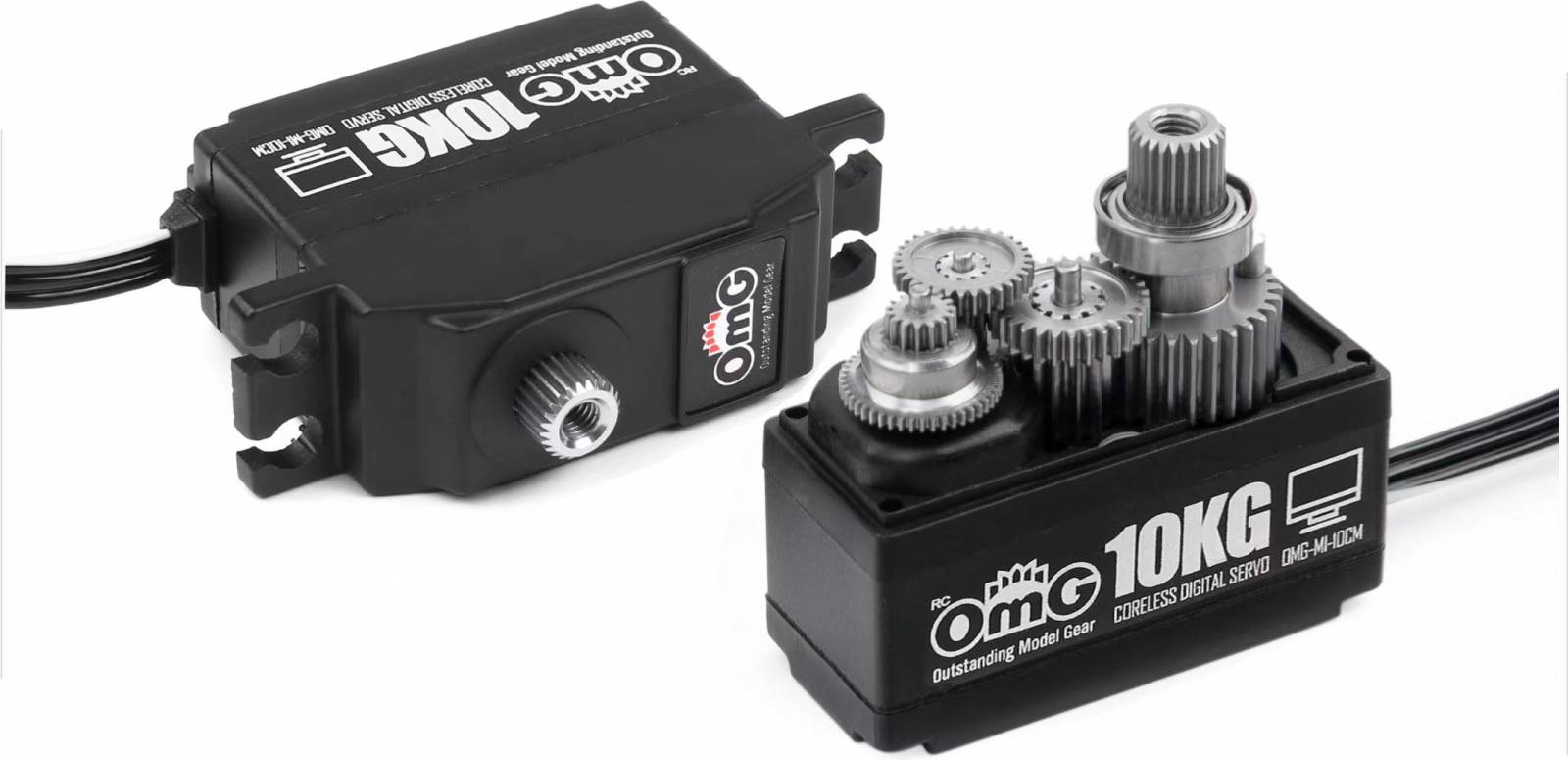

Fit for turbine aircraft, large scale glider, top & bottom is plastic, middle is metal. Aluminum Titanium gear, middle size for rc plane , 1:12th scale racer
If you no have special requirements. The default factory parameters can meet your require, no need to Buy a separate Programmable card
click image to enlarge
ADDITIONAL PHOTOS
|
|
