Servo Digital Coreless LP SG Predator 16KG Drift/Touring Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
26.5 mm
Height:
53 g
Weight:
Steel
Geartrain:
Brushless
Motor Type:
4.8-8.4 v
Voltage Range:
13 kg-cm
Torque @ 4.8V:
0.075 sec/60°
Speed @ 4.8V:
15 kg-cm
Torque @ 6.0V:
0.070 sec/60°
Speed @ 6.0V:
17 kg-cm
Torque @ 7.4V:
0.060 sec/60°
Speed @ 7.4V:
18 kg-cm
Torque @ 8.4V:
0.055 sec/60°
Speed @ 8.4V:
click image to enlarge

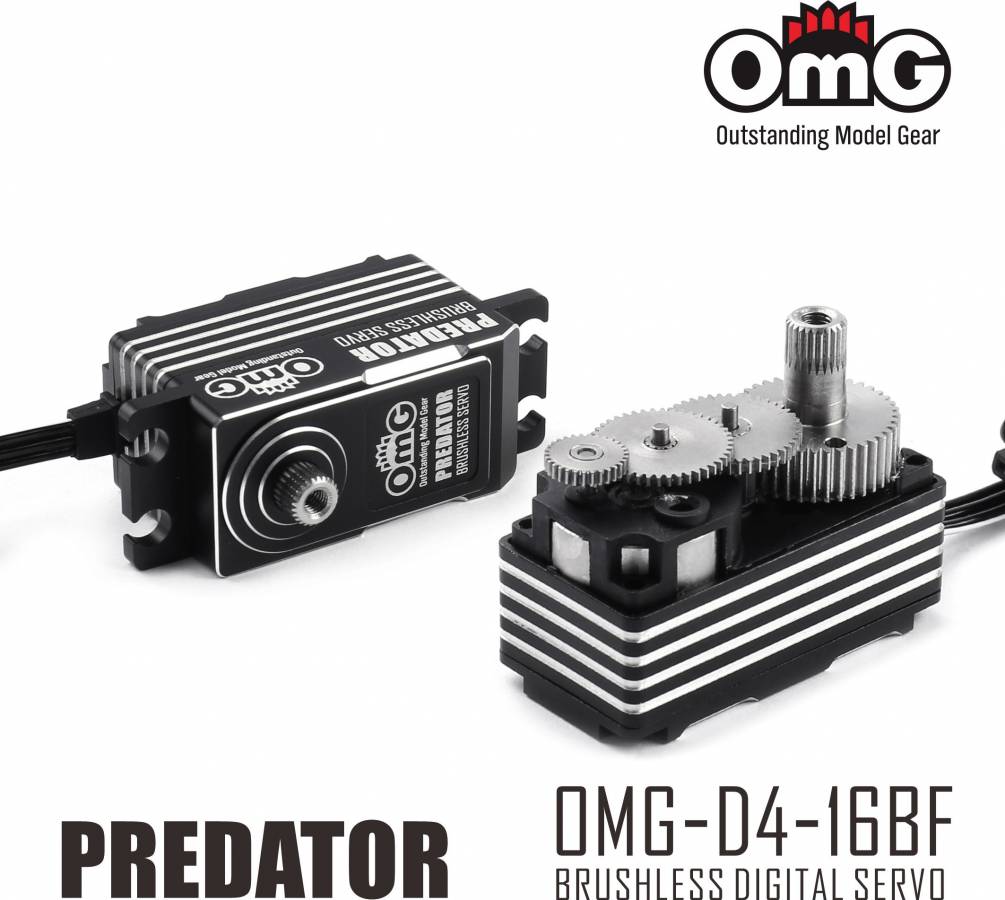

ADDITIONAL PHOTOS
|
