Servo Digital Coreless SSG 30KG Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Bearing
Bearing:
25 Tooth
Output Spline:
39.6 mm
Length:
20.5 mm
Width:
40.7 mm
Height:
66 g
Weight:
Stainless Steel
Geartrain:
Coreless
Motor Type:
6.0 - 7.4 v
Voltage Range:
28 kg-cm (389oz-in)
Torque @ 6.0V:
0.12 sec/60°
Speed @ 6.0V:
30 kg-cm (417oz-in)
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
Standard
Size Class:
Air
Application:
FEATURES

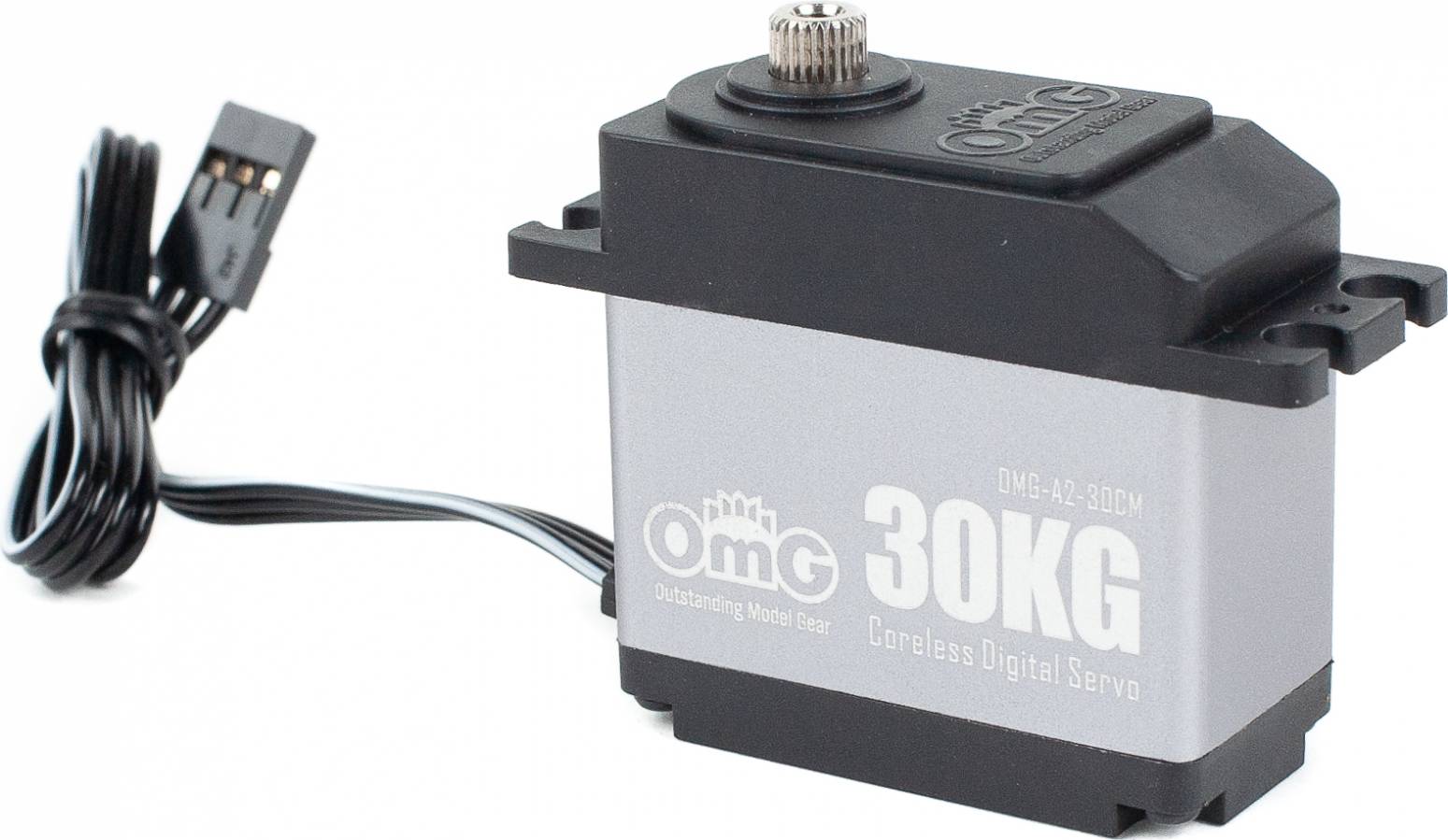

Standard size coreless high voltage digital servo, middle cover in metal, top and bottom cover in plastic, Fit for rc plane
click image to enlarge

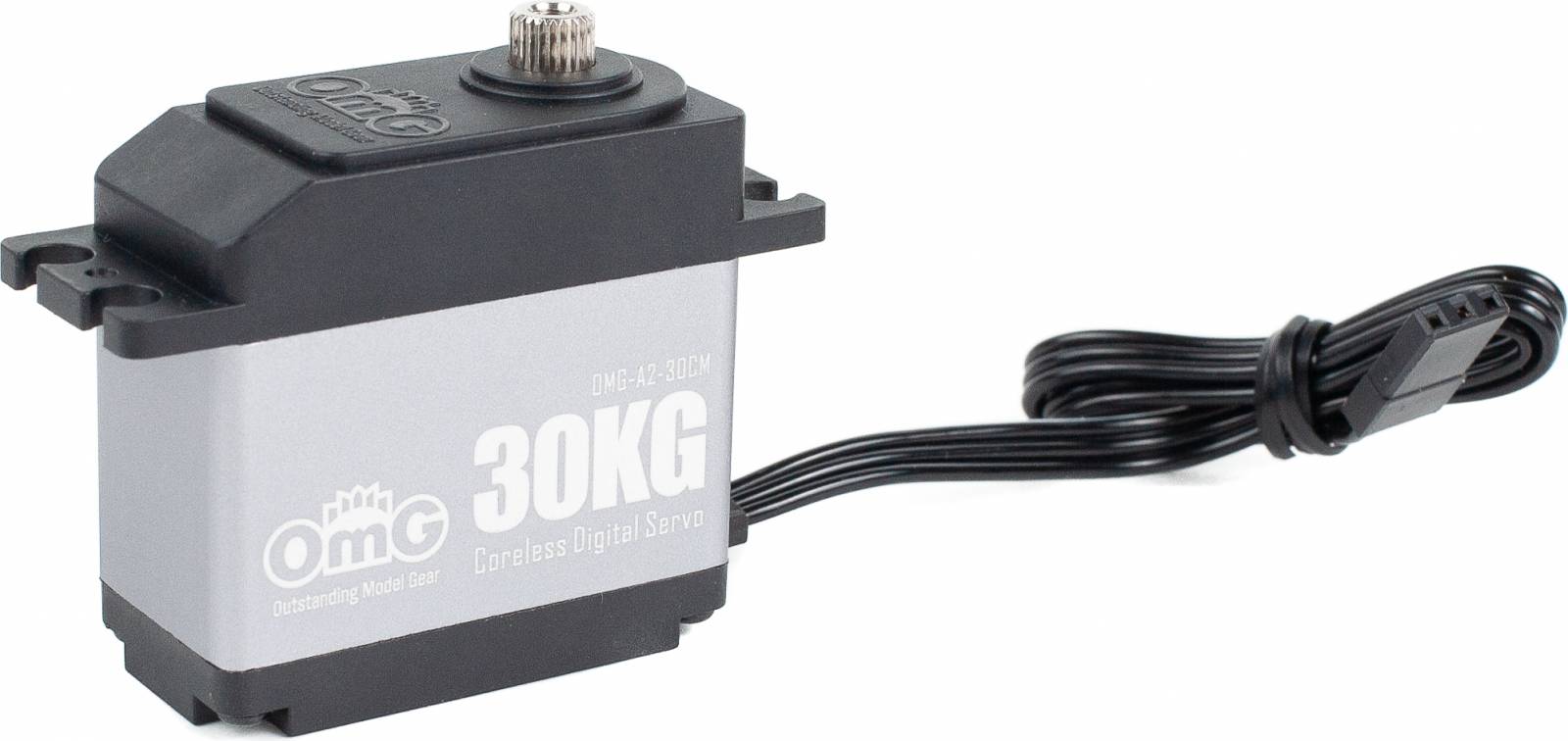

ADDITIONAL PHOTOS
|
