FEATURES
Features:
V-Line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system
Same width as stock (MR02/MR03/PNR2.5 Chassis )
Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision
Adjustable camber from 0-3 degrees with 4 position eccentric shaft with easy operation
Adjustable caster with shims from 1-2 degrees
Ride height adjustment with turn of a screw
Tie rods with 0, 0.5, and 1 degree of toe are included
High quality Precision CNC Swiss 7075 aluminum
Includes:

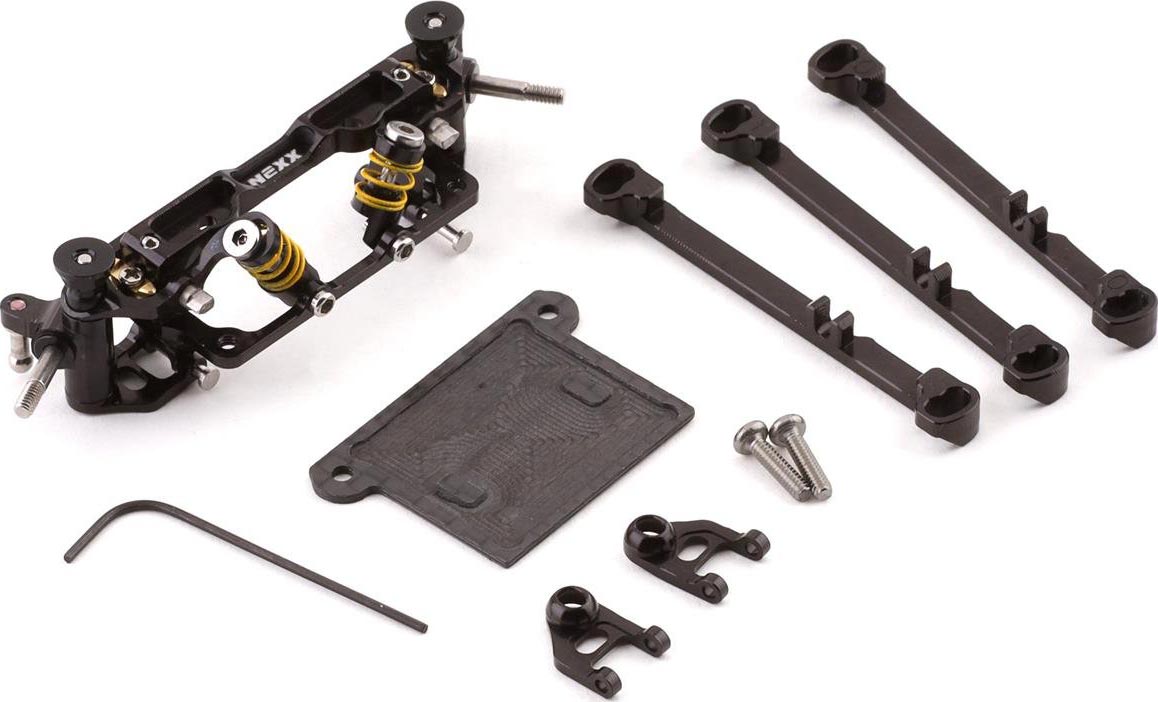

(1) V-Line Aluminum Front Suspension System
The NEXX RACING V-line Aluminum Front Suspension system is designed with innovative features such as, quick adjustable camber, and adjustable ride height. When installed onto your Mini-Z not only does it provide aesthetic improvements, but performance improvements as well. Performance increases are thanks to higher speeds due to improved suspension stability, and improved cornering speed. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance.
Note: This system requires chassis and suspension modifications. Please refer to the video below and the installation manual.
