This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
462 mm
Length:
200 mm
Width:
131 mm
Height:
1.65 kg
Weight:
260 mm
Wheelbase:
4WD
Drivetrain:
FEATURES
The Fazer Mk2 is targeted towards the beginner to intermediate bashers.

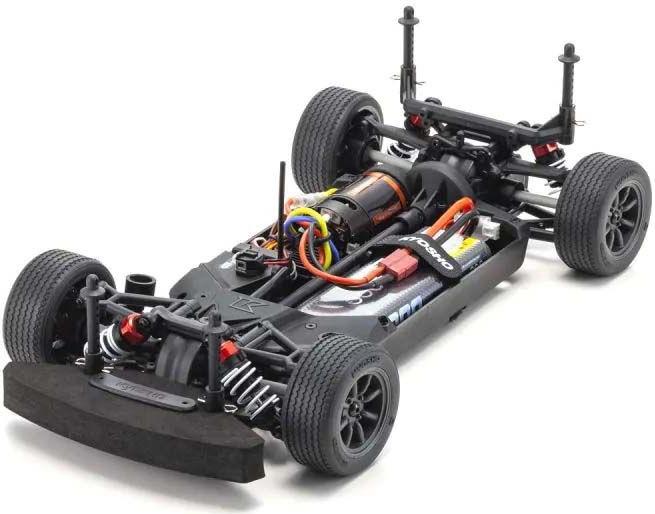

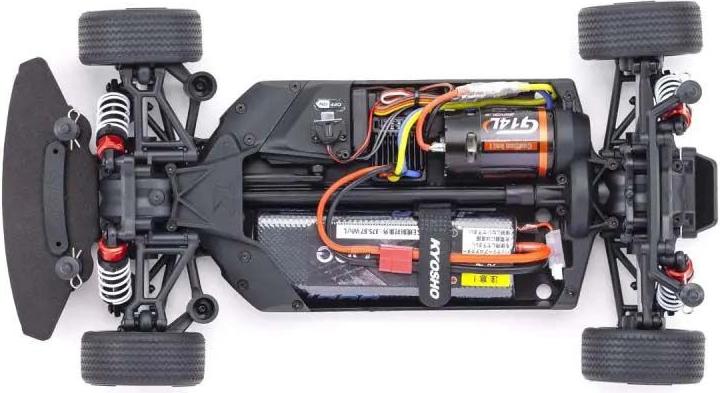

New Mk2 Chassis FZ02! Normal chassis is shorter wheel-base compared to the FZ02L(Dodge Challenger) chassis. New simple and efficient shaft driven 4WD design with improved performance. Light weight and low C of G bathtub style design made of durable glass reinforced 66 nylon material.

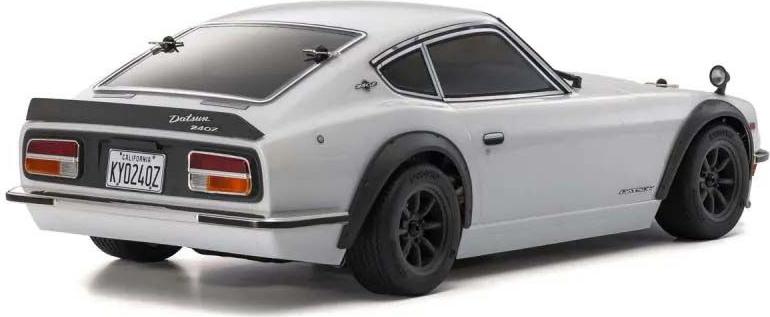

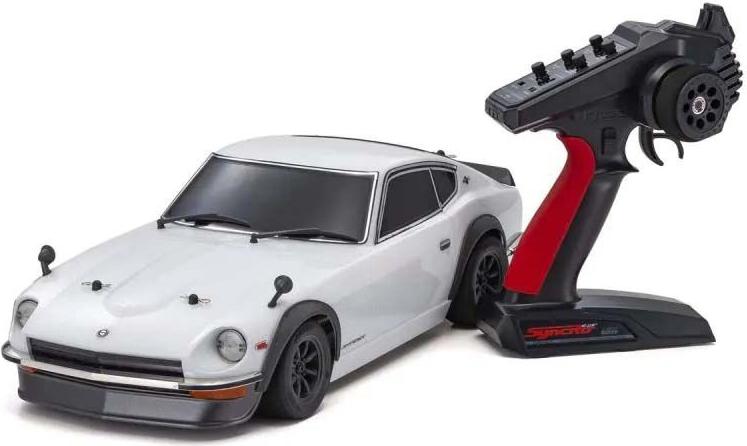

Licensed DATSUN 240Z Body. Plastic chrome plated Bumper and headlights. Tinted clear windows. LED ready with light buckets.
New scale wheel design with brake rotor parts! Also includes 0mm offset rotor hubs(Allowing 190mm width)! Watanabe Wheel style rims with high grip tires!
New steering and double wishbone suspension design for superior handling and damping characteristics. Plastic made of durable glass reinforced 66 nylon material.
Adjustable caster angle (3 settings).
12mm big bore shocks.
Reliable shaft driven 4WD drive train design with slipper clutch.
2 bevel gear type diff system on front and rear.
Easy gear mesh system(22T-30T). Stock pinion is 32T.
New powerful Kyosho original 550 size 14T brushed motor.
New Kyosho Speed House KA060-91W water-proof brushed 60A ESC with Super plug connectors. 2S Li-Po compatible.
New high response high torque KS4081-04WP water proof steering servo
New shock design and soft shock spring setup
New RX box to protect from dust and debris
New Syncro 2.4GHz KT231P+ Radio system
All hex hardware
Full ball raced
READYSET CONTENTS
Factory assembled chassis with graphics.
Servo (KS4081-04WP).
SYNCRO KT-231P+ transmitter and KR-331 Receiver unit
Kyosho KA060-91W ESC and G14L motor
REQUIRED FOR OPERATION
4 x AA battery for Transmitter, 7.2V-8.4V NiMh or 7.4 Li-Po battery and charger
