Modular Alum 29mm Differential 1/8 Arrma
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car & Truck Accessories, Aftermarket Hop Up Parts
But only from... HOT RACING
All items from... HOT RACING
But only from... HOT RACING
All items from... HOT RACING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

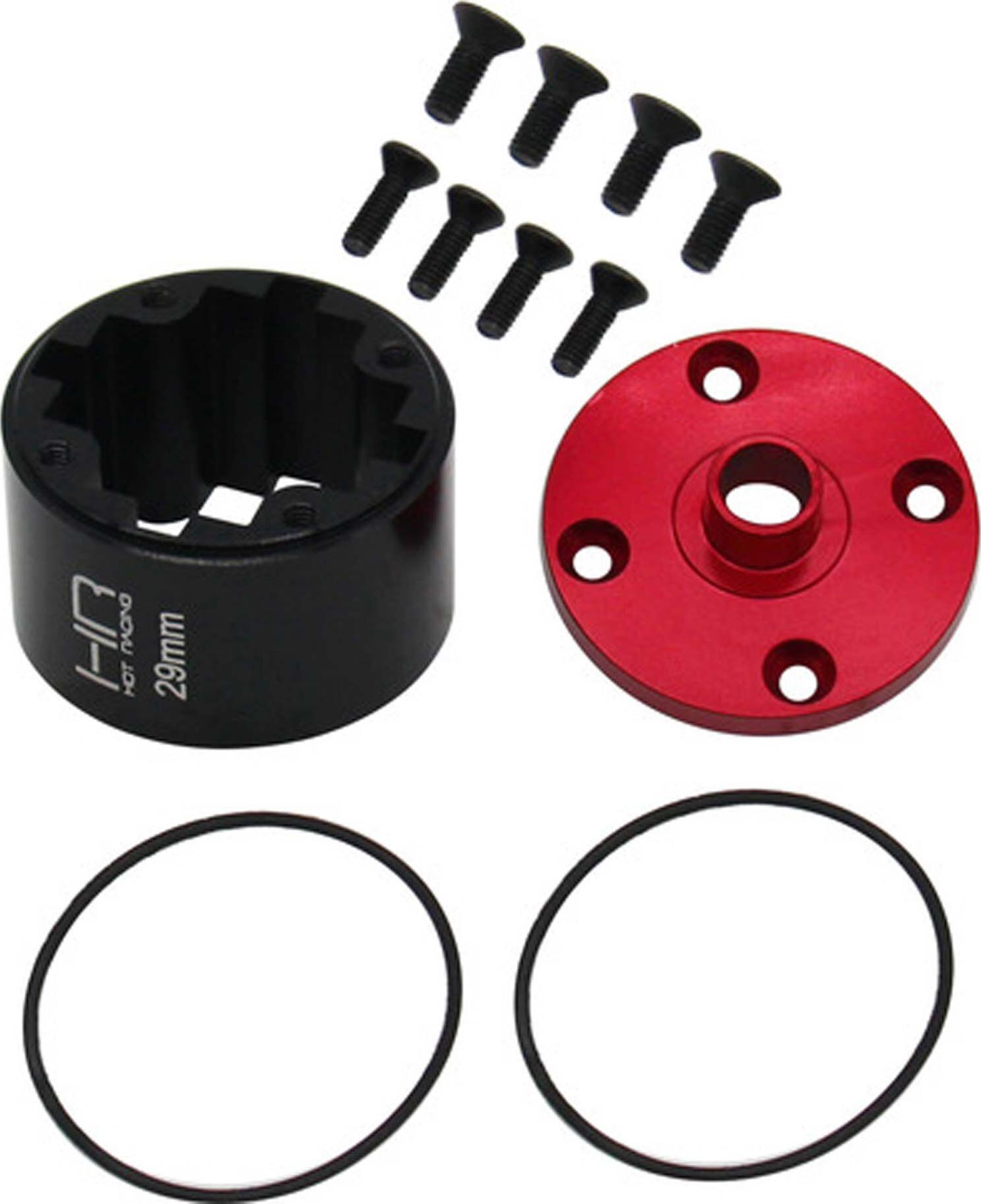

FEATURES
- CNC machined 6061 aluminum, anodized black
- CNC machined 6061 aluminum for light weight.
- Steel pinnon bushing for longevity.
- O-ring for a better seal and reusability.
- Anodized black and Red.

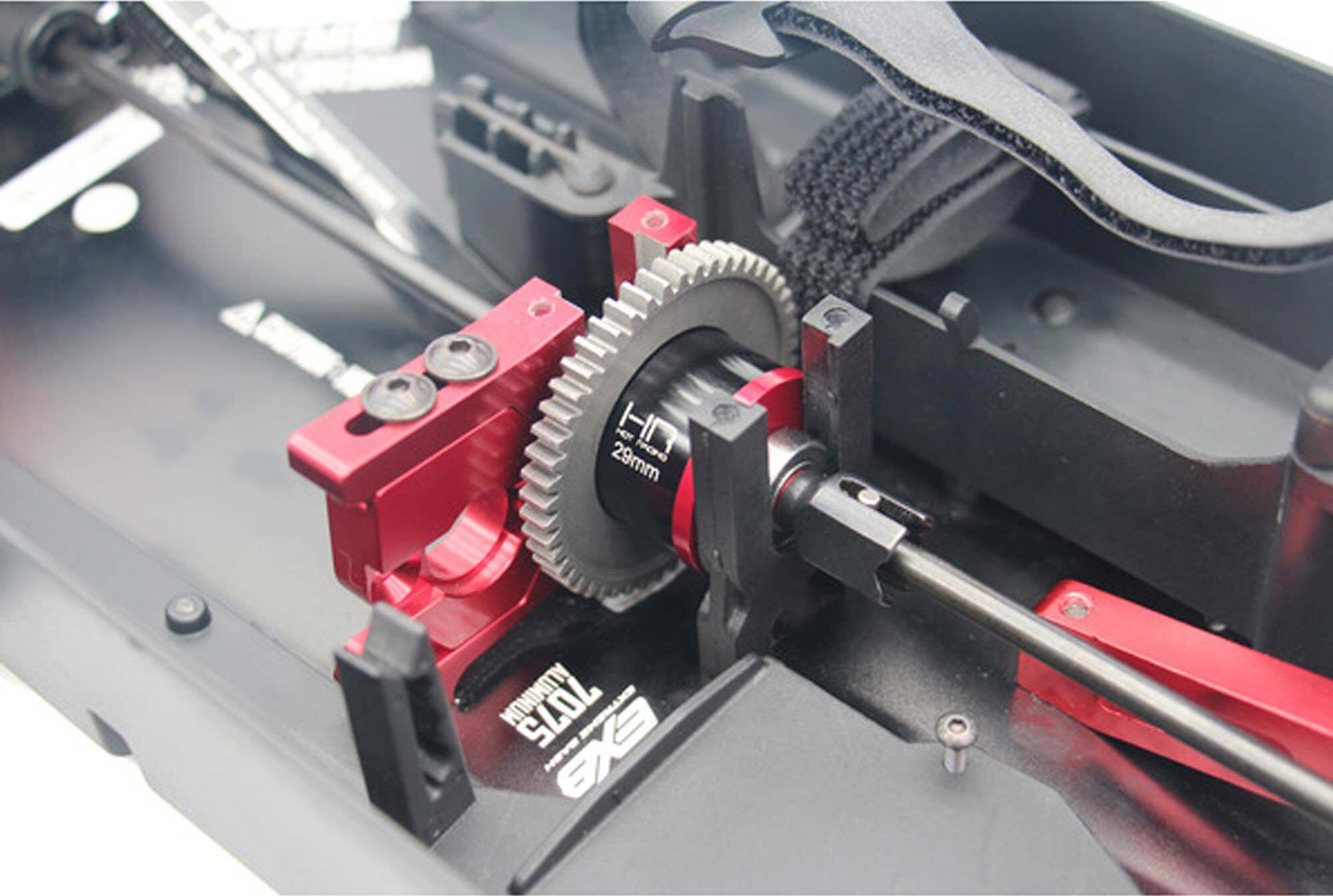

- Fits the front, center, or rear
Requirements
Reused spider and output gears (From Arrma ARA310983), gaskets and o-rings, and ring/pinion
Recommended to use medium thread lock on screws
Use only silicone diff lube
Comments
Replaces Arrma ARA310983 differential carrier
Does NOT work with parts from Arrma AR310433 or ARA220050 differential carrier
Applications
Arrma 1:7 4x4 Mojave 6S BLX V5
Arrma 1:7 Mojave
Arrma 1:8 4x4 Kraton BLX 6S
Arrma 1:8 4x4 Kraton BLX 6S V5
Arrma 1:8 4x4 Notorious 6S
click image to enlarge
ADDITIONAL PHOTOS
|
PRODUCT RESOURCES
083745355451 0083745355451
HRAAON11ETN02
