Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

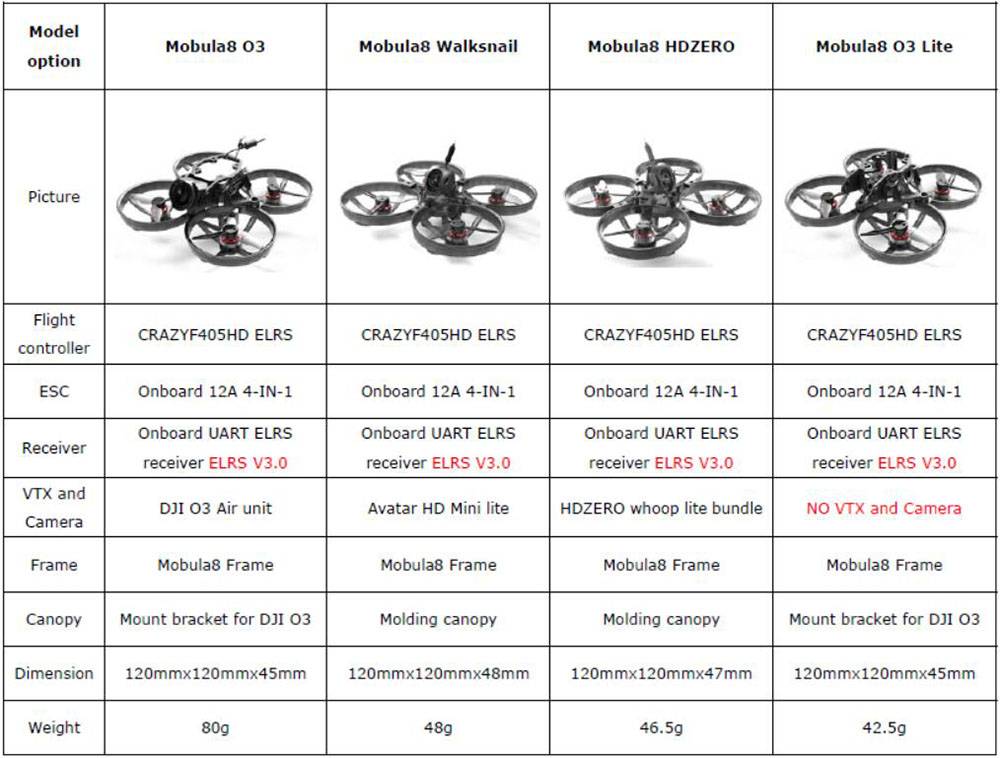

Walksnail version
Camera
Avatar lite camera
Image Sensor 1/2.7”1nch
Resolution 1080P/60fps,720P/120fps,720P/60fps
Ratio 16/9 4/3
Lens 2.1mm
FOV 170°
Aperture F2.0
Shutter Rolling Rolling shutter
Min.Illumination 0.001Lux
Weight 1.8g
Dimensions 14*14*16mm
VTX
Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G
Recording 1080p/720p
Weight 5.1g
Operating Temperature -20-40?
Channels 8
Wide Power Input 3.1V-5V
Supported FC System Betaflight
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX
