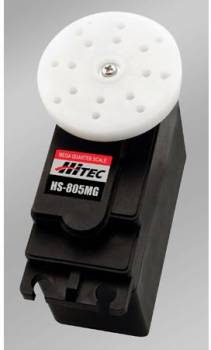

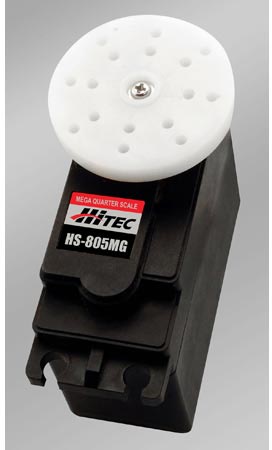

HS-805MG Mega Giant Scale Metal Gear Servo 1/5 Car
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
15 Tooth
Output Spline:
66 mm
Length:
30 mm
Width:
57.6 mm
Height:
197 g
Weight:
Metal
Geartrain:
4.8 - 6.0 v
Voltage Range:
10.8 kg-cm (275 oz-in)
Torque @ 4.8V:
0.22 sec/60°
Speed @ 4.8V:
24.7 kg-cm (343 oz-in)
Torque @ 6.0V:
0.18 sec/60°
Speed @ 6.0V:
FEATURES
- Large 8mm Output shaft
- Dual Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
The HS-805MG heavy duty supersized servo was designed to handle the punishment dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to take abuse and keep on going.
