SPECIFICATIONS
Coreless
Motor Type:
Karbonite Gear with Ball Bearing
Bearing:
0.14 / 0.11 sec @ 60 deg.
Speed:
6.6 / 8.2 kg.cm
Torque:
1.57" x 0.78" x 1.45"
Dimensions:
1.87 oz
Weight:
FEATURES
G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Karbonite Composite Gears
Programmable Features Include:
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution* (default is high resolution)
Overload Protection* (default is off)

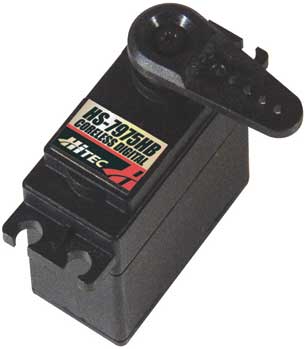

Providing the ultimate combination of torque and speed, the HS-7975HB servo features the Karbonite gear technology that offers four times the strength of nylon with no flex or wear resulting in incredible precision and that “locked in feelâ€. Featuring our our G2 second generation programmable digital circuit with twice the resolution of our original circuit and added programmable overload protection. The HS-7975HB is an excellent choice for pattern planes and high performance helicopters up to .90 size.
