SPECIFICATIONS
Coreless
Motor Type:
Dual BB
Bearing:
0.19 sec/60°
Speed @ 4.8V:
249.96 oz-in
Torque @ 4.8V:
40 x 20 x 37 mm
Dimensions:
65 g
Weight:
333.29 oz-in
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
G2 Digital Circuit
Coreless Motor
Dual Ball Bearing Supported Output Shaft
Titanium Gear Train (MK first gear)
Programmable Features Include:
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution* (default is high resolution)
Overload Protection* (default is off)

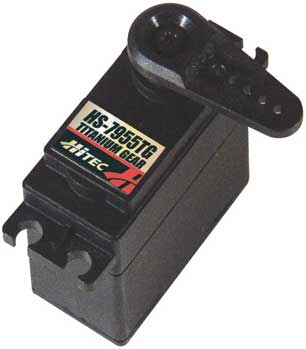

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.
A note on coreless motors
A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
