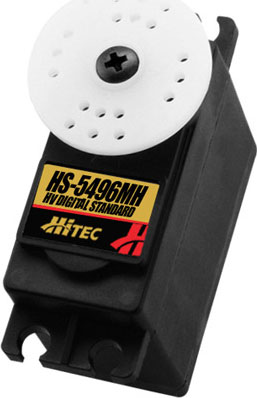

HS-5496MH HV Standard Metal Gear Digital Sport Servo 0.17/99oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
24 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
52 g
Weight:
Metal
Geartrain:
6.0 - 7.4 v
Voltage Range:
6.4 kg-cm (89 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
7.5 kg-cm (104 oz-in)
Torque @ 7.4V:
0.15 sec/60°
Speed @ 7.4V:
