SPECIFICATIONS
24 Tooth
Output Spline:
32.4 mm
Length:
17 mm
Width:
31 mm
Height:
27 g
Weight:
4.8 - 6.0 v
Voltage Range:
3.9 kg-cm (54 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
4.8 kg-cm (67 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
FEATURES
3-Pole Ferrite Motor
Top Ball Bearing

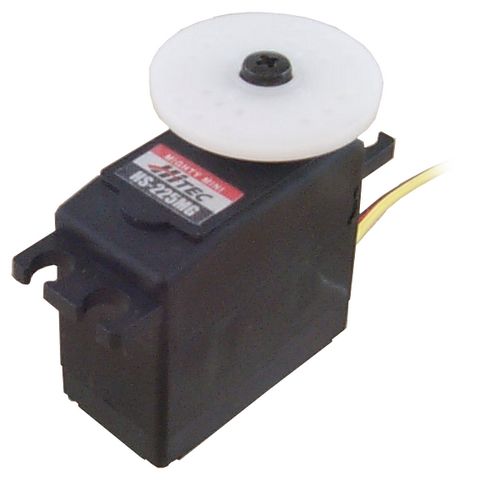

The HS-225BB is deal for applications that call for a small lightweight, high speed, high torque servo. Using state-of-the-art SMT technology, and a custom designed IC the HS-225 series of servos represent a true value with the performance that rivals the others larger more expensive servo.
Applications: Sport or high performance Aircraft to 4lbs.
Note: While the torque value is very high on this servo, it is still a mini size servo so the gears are not as strong as a standard servo.
