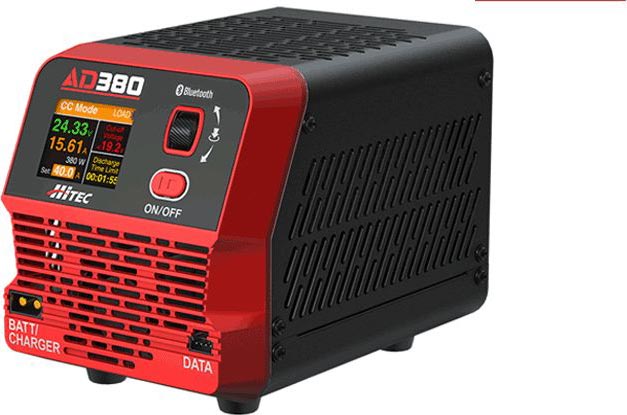

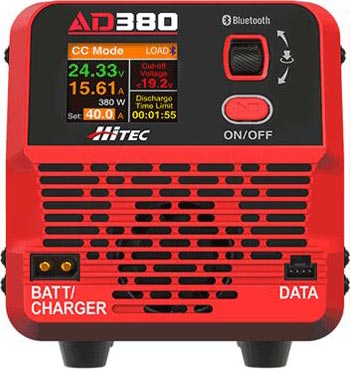

AD380 Stand Alone Battery Discharger and Analyzer
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
3.0-30.0 V
DC Input:
380 w
Discharge Power:
2-7 cells
LiPo Cells:
2-7 cells
LiHV Cells (4.35v/cell):
6-20 cells
NiMH/NiCd Cells:
FEATURES
Specifications:
- Operating Voltage: DC 3.0V–30.0V
- Discharge Rate: 5.9V–30.0V
- Discharge Power: 380W MAX
- Constant Current: 0.3–40.0A
- Constant Resistance: 1–100Ω
- Constant Power: 1–380W
- Constant Voltage: 180W MAX
Operating Modes
- Constant Current (CC) Mode
- Constant Resistance (CR) Mode
- Constant Power (CP) Mode
- Constant Voltage (CV) Mode
Features:
- Displays real-time battery voltage plus discharged capacity & current
- Tests battery capacity to aid in selecting batteries with desired capacity
- Saves time for storing large-capacity batteries
- Provides your batteries with optimal performance for competition
- Supports Android & iOS App for convenient usage
- Detects the quality of the DC-stabilized power supply
click image to enlarge
ADDITIONAL PHOTOS
|
|
PRODUCT RESOURCES
HIT44406
