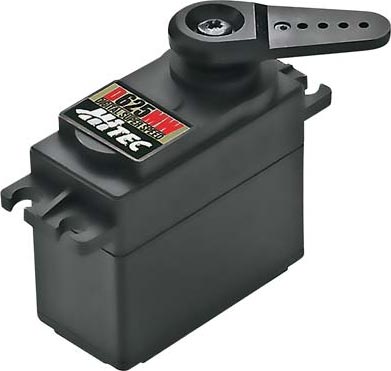

Servo D625MW 32-Bit Metal Gear 122oz-in 0.15sec@6.0V
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
4.8, 6.0, 7.4 v
Voltage Range:
87 oz-in
Torque @ 4.8V:
0.20 sec/60°
Speed @ 4.8V:
122 oz-in
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
139 oz-in
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
40.6 mm
Length:
19.8 mm
Width:
37.8 mm
Height:
57 g
Weight:
FEATURES
The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
This is the upgraded version of the HS-5665MH
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
