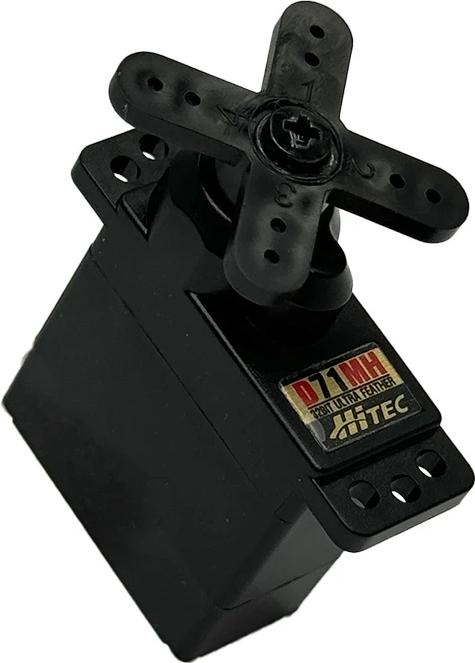

D71MH 12.5G Metal Gear Digital Micro Servo 0.13/57oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
25 Tooth
Output Spline:
23.6 mm
Length:
11.6 mm
Width:
31.0 mm
Height:
12.5 g
Weight:
Cored Brushed Motor
Motor Type:
3.5-8.4 v
Voltage Range:
3.7 kg-cm
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
4.1 kg-cm
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
FEATURES
The micro sized, metal geared D71MH is part of our D-Series Servo Line with a longer life Carbon Brushed Motor. The D71MH is a more powerful option to the HS-5065MG. The fully programmable servo operates on a wide 3.5 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators.
click image to enlarge
ADDITIONAL PHOTOS
|
HIT36071S
