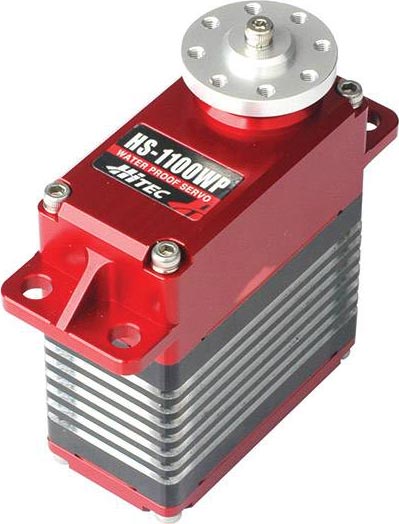

Servo HS1100WP Waterproof Ultra-Heavy Duty
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
15 Tooth
Output Spline:
64 mm
Length:
33 mm
Width:
73 mm
Height:
363 g
Weight:
11.1-14.8 v
Voltage Range:
1167 oz-in
Torque @ 11.1V:
0.26 sec/60°
Speed @ 11.1V:
1528 oz-in
Torque @ 14.0V:
0.19 sec/60°
Speed @ 14.0V:
FEATURES
Features:
- Non-programmable, Industrial Digital Circuitry
- EMI-shielded Cases
- International Protection Code 67 Rating
- Immersion up to 1 meter
- Durable Steel Gears
- 14.8V 4-Cell LiPo Capability
- 5-Pole Carbon Brushed Motor
Giant scale servos, watch out! Our HS-1100WP waterproof, heavy-duty digital giant brings out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to our giant servo line has Hitec's unrivaled industrial digital circuitry and engineering. Your world just got BIGGER with the introduction of the HS-1100WP!
HIT34110S
