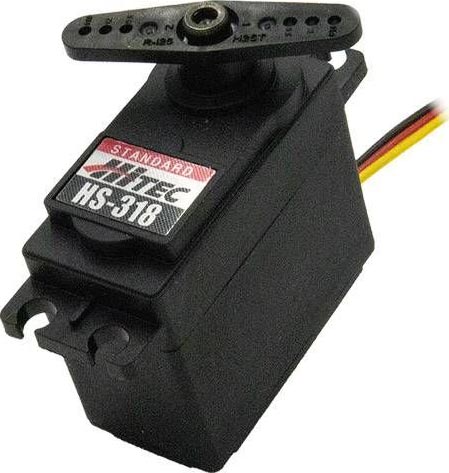

Servo HS318 Standard Economy 25T
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

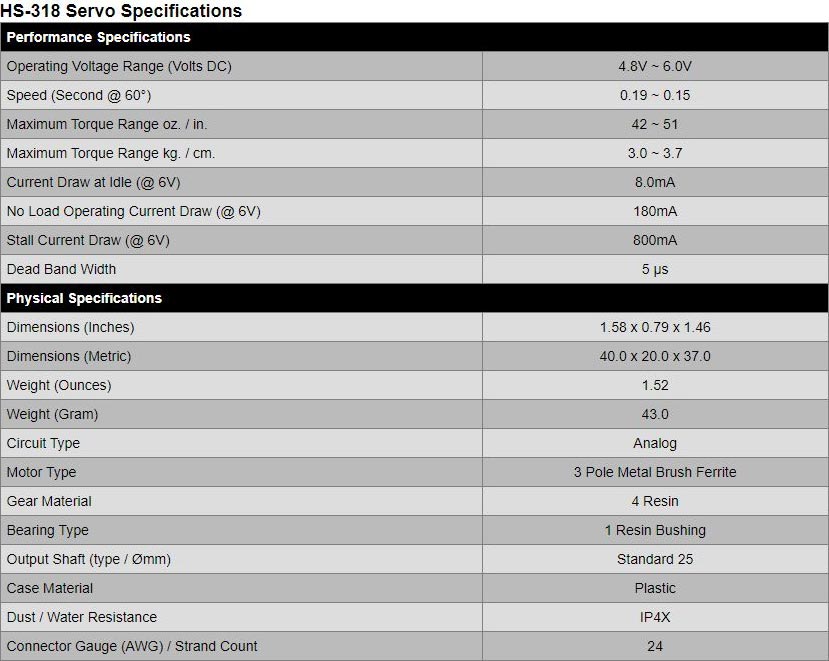

SPECIFICATIONS
25 Tooth
Output Spline:
40.0 mm
Length:
20.0 mm
Width:
37.0 mm
Height:
43.0 g
Weight:
4.8-6.0 v
Voltage Range:
42 oz-in
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
51 oz-in
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
FEATURES
Features:
- Our Low Cost Standard Size Servo
- 25-Tooth Output Spline
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
Hitec HS-318 Standard Economy (25 Tooth Spline)
The HS-318 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with a 25 tooth spline, precise resin gears and SMT circuitry, the HS-318 represents a remarkable value
