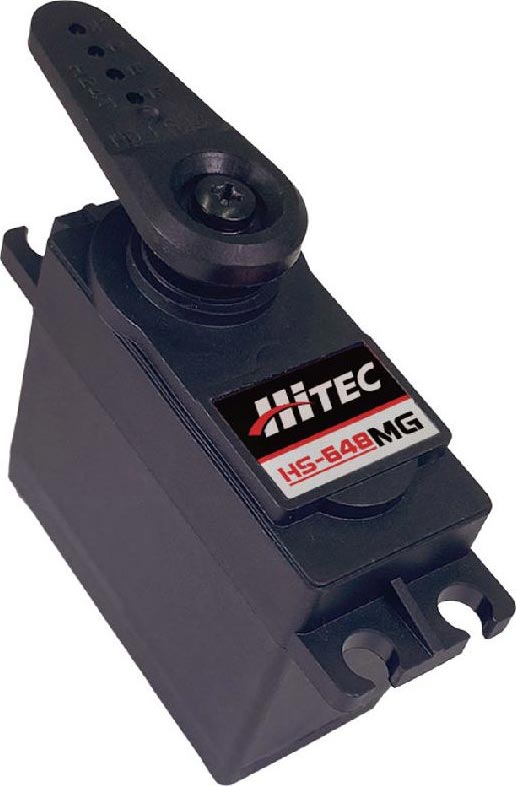

Servo HS648MG High Torque Metal Gear 25T Analog Sport
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40.6 mm
Length:
19.8 mm
Width:
37.8 mm
Height:
55.2 g
Weight:
3.5-6.8 v
Voltage Range:
106.93 oz-in
Torque @ 4.8V:
0.24 sec/60°
Speed @ 4.8V:
133.32 oz-in
Torque @ 6.0V:
0.20 sec/60°
Speed @ 6.0V:
FEATURES
Features:
- High Torque Metal Gear Servo
- 25 Tooth Output Spline
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Cored Metal Brush Motor
- Dual Ball Bearing Supported Output Shaft
- Top Selling High Torque Metal Gear Servo
Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-648MG is the 25-tooth version of the powerful high-torque HS-645MG. It’s the perfect choice for larger sport planes or monster trucks and buggies requiring a durable high torque servo. Equipped with unique M/P and metal gear train technology, the HS-648MG offers one of the strongest gear trains available in any servo.
669962326483 0669962326483
HIT32648S
