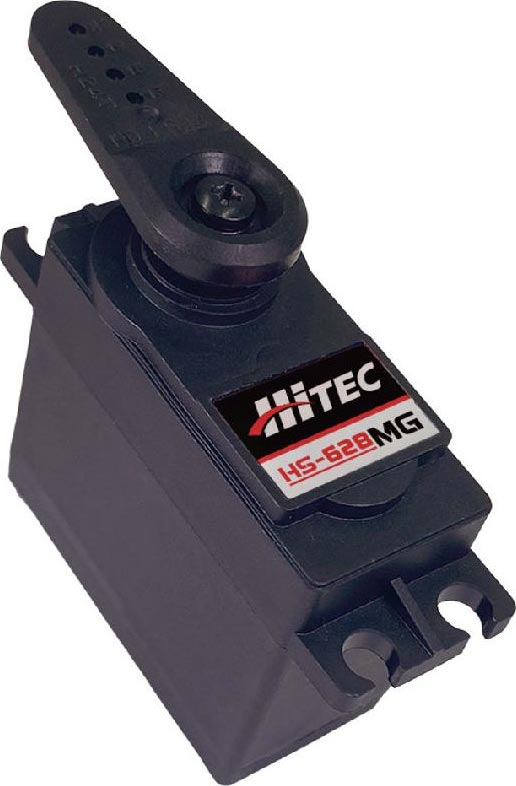

Servo HS628MG High Speed Metal Gear 25T Analog Sport
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
|
|
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40.6 mm
Length:
19.8 mm
Width:
37.8 mm
Height:
55.2 g
Weight:
3.5-6.8 v
Voltage Range:
76.38 oz-in
Torque @ 4.8V:
0.018 sec/60°
Speed @ 4.8V:
94.43 oz-in
Torque @ 6.0V:
0
0.15 sec/60°
Speed @ 6.0V:
0.15 sec/60°
FEATURES
Features:
- Affordable High Speed Metal Gear Servo
- Cored Metal Brush Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-628MG is the 25-tooth version of the powerful high-speed HS-625MG. It's the perfect choice for applications requiring a fast and strong standard-size servo. Utilizing M/P and metal gear train technology, the HS-628MG is a fantastic sport servo for larger planes and 1/10th scale sport vehicles.
